For over 60 years, Paktron (formerly Quantic Paktron) has been recognized for capacitor innovation and its proprietary stacked, multilayer polymer (MLP) construction. This advanced design delivers superior mechanical and electrical performance compared to traditional wound film capacitors, and serves as a self-healing alternative to ceramic capacitors with strong high-ripple-current handling—making Paktron a trusted choice for a wide range of demanding applications.
AEC-Q200 options available.
Location: 1205 McConville Rd, Lynchburg, VA 24502; Tel. +1 434.239-6941
- Wide Bandgap Applications
- VPX Systems
- Voltage smoothing
- Timing/tuning
- Switched mode power supplies
- Low energy pulse applications (ignition, systems, etc.)
- L-C filtering (power converters, power amplifiers, etc.)
- EMI filtering
- DC link applications, (low energy)
- DC Block Applications (HF, plasma amplifiers, etc.)
- Coupling and de-coupling
- Boost converters

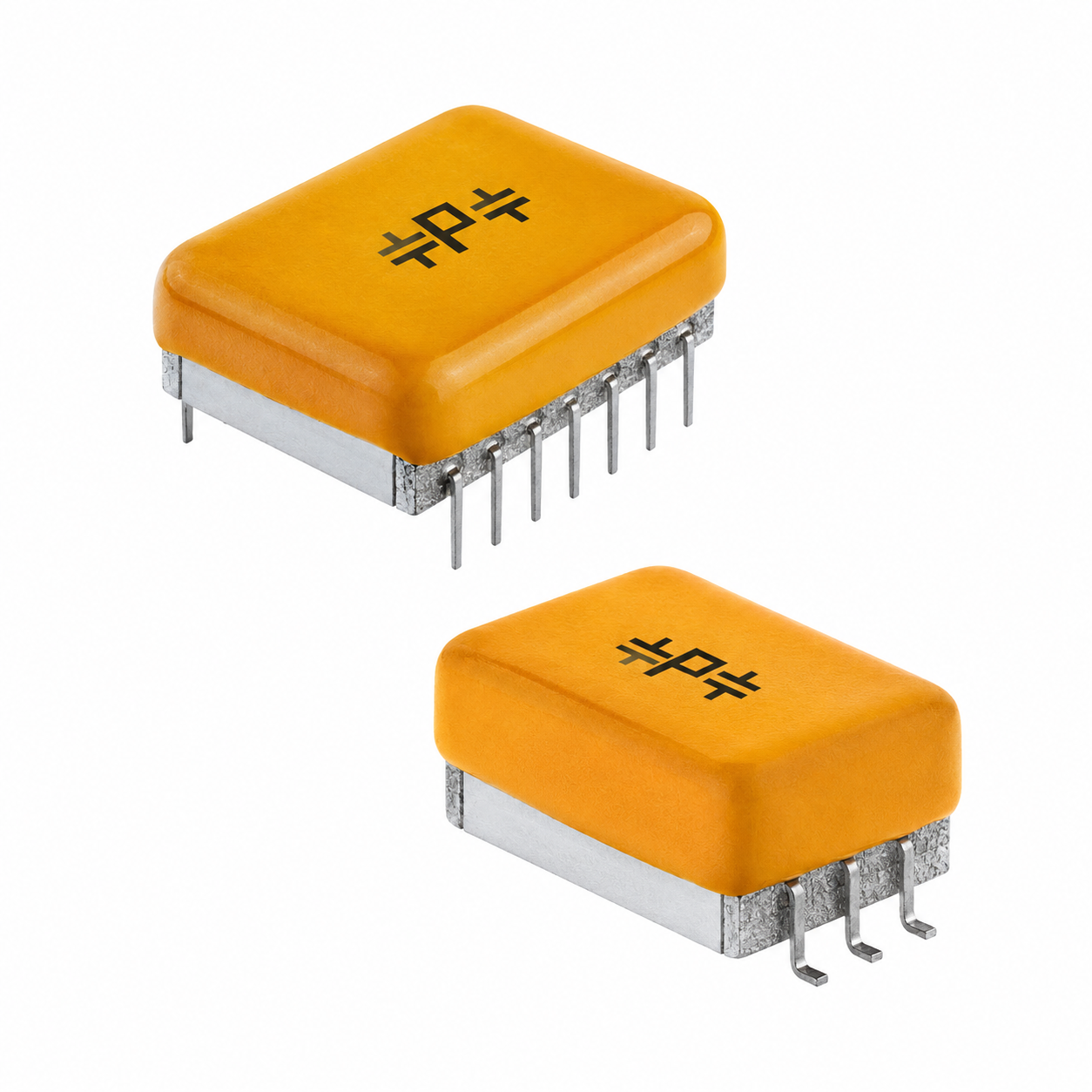

Capstick
- 0.33uF - 42uF
- 50VDC - 1200VDC
- 10mm - 15mm lead spacing
- SMD versions available

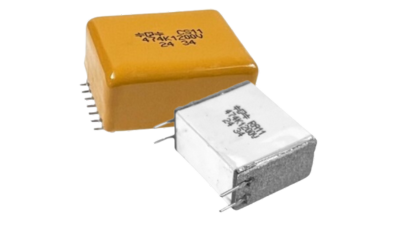

New High Voltage MLP
- <2uF typical values available
- 1000VDC - 1200VDC
- 27.5mm lead spacing
- SMD and thu-hole options available

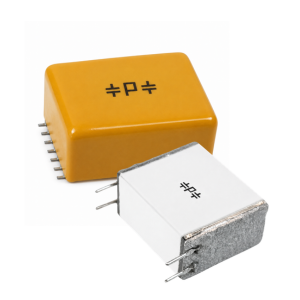

CS11 Capstick High Voltage Datasheet

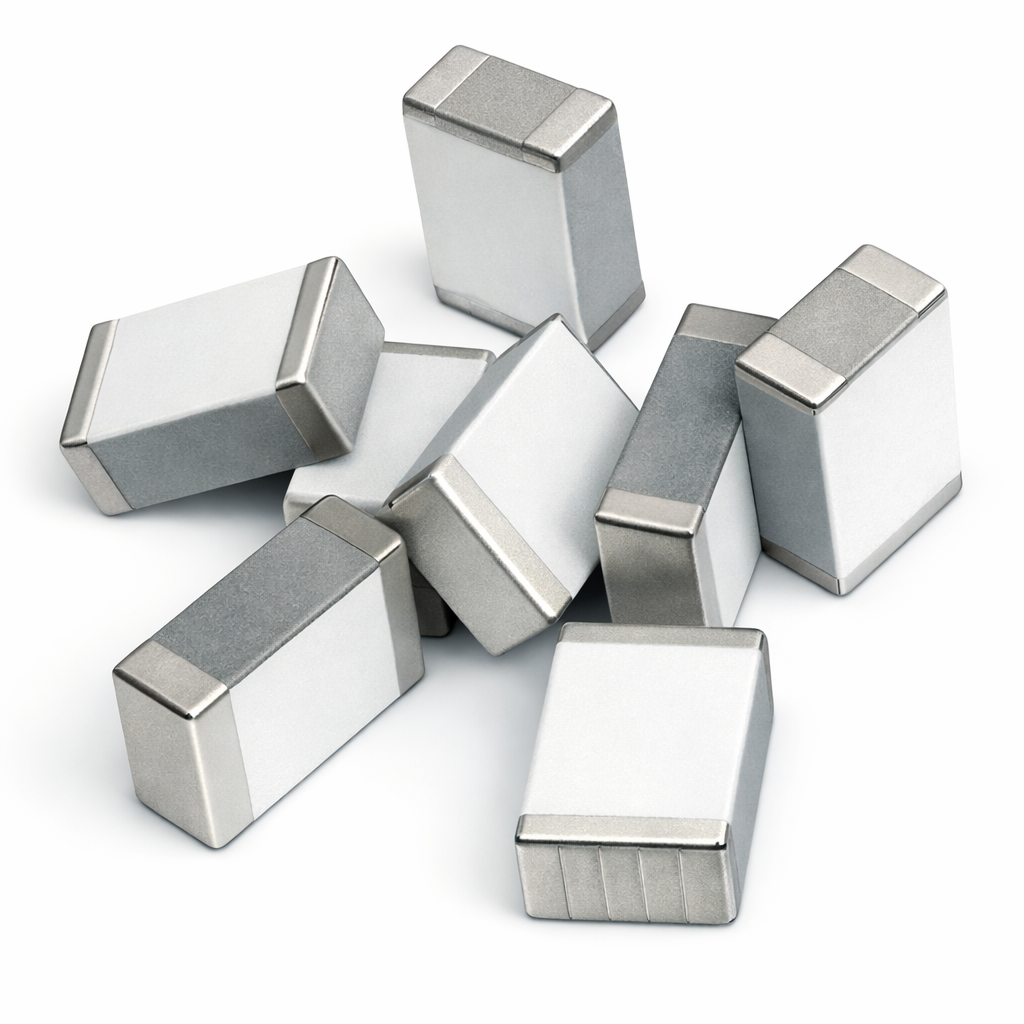

Surfilm
- 1.0uF - 2.2uF
- 100VDC / 80VAC
- Non-polarized
- Chip style (ST2824/ST3827) or lead-frame style (ST3/ST4)
- Reflow Solderable
