UTC (formerly Quantic UTC) designs and manufactures high-reliability multilayer ceramic capacitors (MLCCs) in its DLA MIL-PRF-790–approved facility in Monterey Park, California. UTC leverages state-of-the-art dielectric materials, advanced manufacturing equipment, and rigorous hi-rel screening and testing to meet the requirements of military, aerospace, space, medical, and other mission-critical markets. Using both PME and BME electrode technologies, UTC offers standard and custom MLCC solutions including discoidal capacitors, planar arrays, SMPS capacitors, pulse-energy capacitors, high-voltage capacitors, and high-temperature MLCCs.
Location: 718 Monterey Pass Rd., Monterey Park, CA 91754 Tel +1 323.266.6603
- Hi-rel military and defense power electronics
- EMI suppression and filtering
- Coupling/decoupling
- Energy storage and pulse discharge circuits
- High-temperature electronics (e.g., >150°C applications)
- Precision analog circuits requiring temperature-stable NP0
- Power supply filtering (input/output filtering in DC/DC converters)
- Aerospace avionics systems
- Munitions
- Missile guidance and control electronics
- Spacecraft payload and bus electronics
- Communications equipment (satcom, tactical radios)

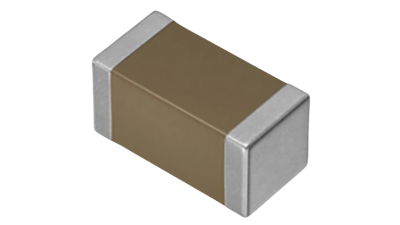

MLCC (Low and Mid Voltage)
- Voltage Range: 6.3V-12KV
- Cap Range: 1.2pF - 220uF
- Size: 01005 - 13060
- Dielectric: NPO, X7R, X5R
- Industrial & Commercial

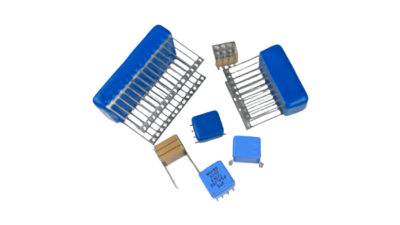

SMPS
- Voltage Range: 50V-500V
- Cap Range: .01uF – 27uF
- Size: Case Code Size 1-6
- Dielectric: NPO, X7R
- Military, high end protection

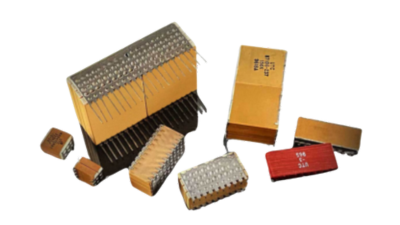

Military (MIL-PRF 49470)
- B Level Voltage: 50V-500V
- Cap Range: 0.15uF - 47uF
- Size: Case Size 3, 4, 5
- Dielectric: BX, BR, BQ
- T (Space) Level Qualified Products

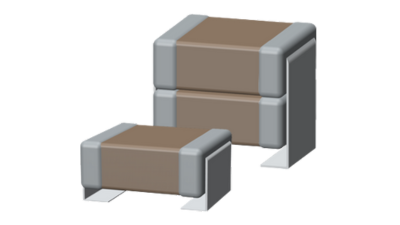

MegaCap Type (BC Series)
- Voltages to 1000V
- Higher capacitance on same footprint
- Dielectric: COG and X7R
- Industrial Smoothing & Decoupling, resonant charging systems, DC to DC conversion, power supplies

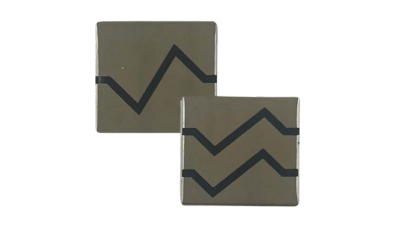

Pulse Energy
- Available in high temperature to 250°C
- Up to 10KV range for single and multi-pulse firing applications
- Custom sizes, capacitance, and voltage ranges are available
- Missiles, downhole detonation

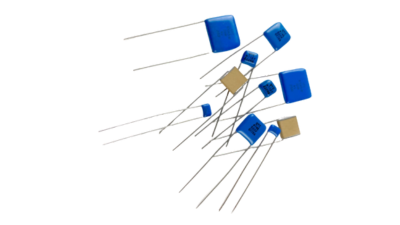

Radial Leaded
- Voltage Range: 250V-10,000V
- Cap Range: .05pF - .68uF
- Capacitance Range: 1.5mF–300mF
- Size: .25 x .22 to .55 x .28
- Dielectric: NPO, X7R

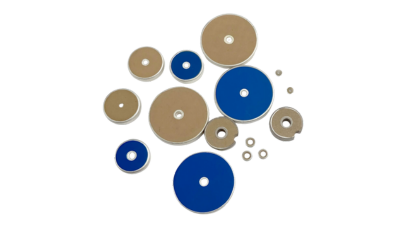

Discoidal
- Cap Range: .05pF – 7.2uF
- Voltage Range: 25V-3000V
- Size: 0502 - 6429
- Temperature Dielectric: NPO, X7R
- EMI Suppression Filter

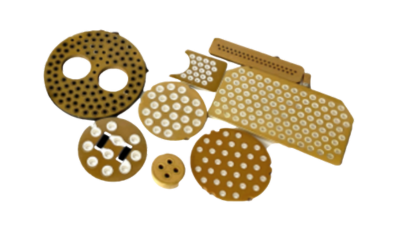

Planar Arrays
- Voltage Range: 50V-2000V
- Cap Range: 100pF – uF
- Size: Custom/Standard: Circular, Sub D, ARINC
- Dielectric: NPO, X7R
- Connectors, low-pass filter

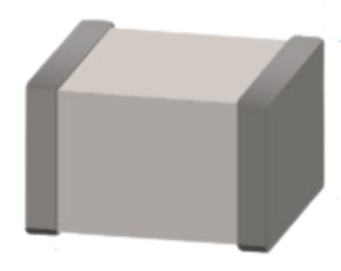

Safety Caps
- High reliability and stability
- Small size and high capacitance
- Safety standard approval by certificate number: TUV. R-0551491 UL. E529341
- RoHS and HALOGEN compliant
