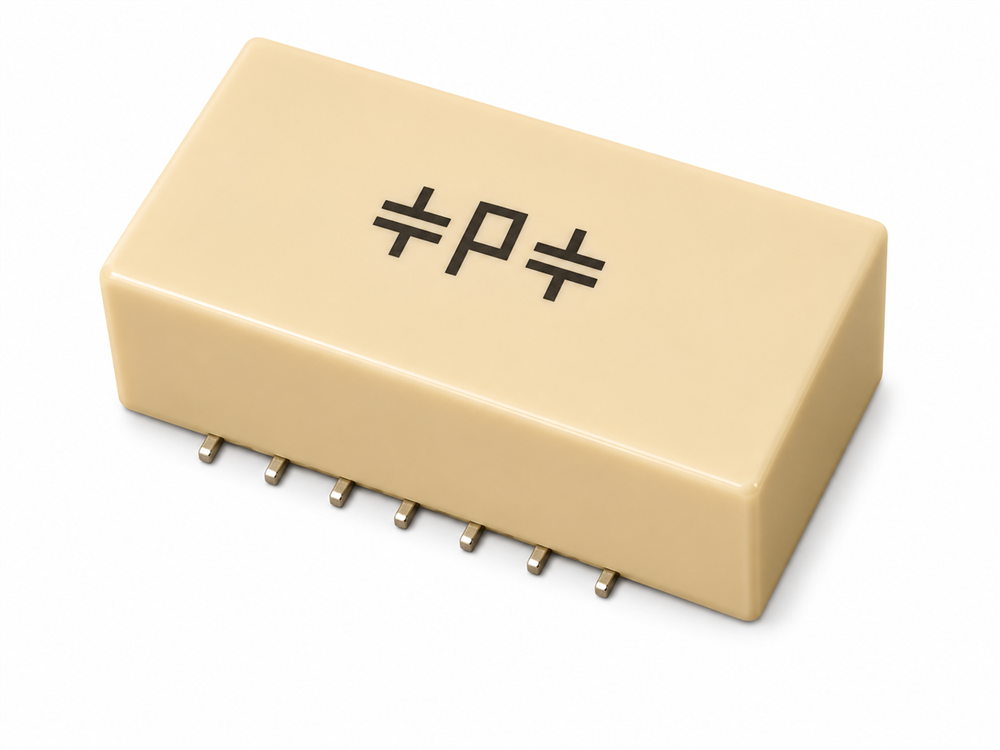

CB4G Series
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Multilayer Polymer (MLP) Film |
| Grade: | Hi-Rel / Rugged |
| Dielectric/Construction: | Non-inductively constructed with metallized polyester dielectric, polyethylene terephthalate (PET), in a parallel plate multilayer polymer (MLP) design. Electrodes use aluminum metallization. |
| Rated Voltage: | 100 VDC / 80 VAC |
| Capacitance: | 2.0 µF to 10.0 µF @ 1 kHz |
| Sizes: | CB4 case platform with surface-mount gull-wing lead configuration |
| Operating Temp: | -55 °C to +125 °C |
Overview
Paktron’s CB4G Series is a second generation high-frequency switching power supply capacitor series designed for 48 volt bus input and output applications. Built with non-polarized multilayer polymer film technology, the CB4G Series combines high capacitance, low impedance, and high ripple current capability in a compact surface-mount package.
The CB4G Series is engineered for switching power trains above 100 kHz and reflected RFI filtering. Its self-healing metallized polyester construction helps avoid shorts, making it a reliable alternative to ceramic and tantalum capacitors in elevated-voltage applications. With surface-mount gull-wing leads, a flat pick-and-place-compatible package, and operation from -55 °C to +125 °C, CB4G capacitors are well suited for compact, high-density power electronics designs.
Additional Features
- Second generation high-frequency switching power supply capacitor series
- Ideal for 48 volt bus input and output applications
- Low impedance ESR/ESL construction
- Self-healing film design helps avoid shorts
- Reliable solution to ceramic and tantalum capacitor faults at elevated voltage
- Made for >100 kHz switching power trains and reflected RFI
- Surface-mount capability with gull-wing leads
- Flat surface for pick-and-place assembly
- High ripple current / high capacitance performance
- Volumetrically efficient package design
- Non-polarized capacitor construction
- Tolerance: K ±10% standard; J ±5% available
- RoHS-5 standard part number; RoHS-6 available with -FA suffix
- Made in U.S.A.
Typical Applications
- High-frequency switching power supplies
- 48 volt bus input filtering
- 48 volt bus output filtering
- DC-to-DC converters
- Reflected RFI filtering
- Compact high-capacitance power designs
- Surface-mount power electronics assemblies
- High ripple current filtering
- Elevated-voltage capacitor replacement applications
- Power-dense electronic systems
