Evans (formerly Quantic Evans) hybrid wet tantalum capacitors are the most power dense in the industry, providing significant SWaP savings when compared to traditional capacitor technologies. Our trusted products are qualified and in service with all tier 1 aerospace and defense contractors.
Our industry-leading power density is the result of our patented proprietary hybrid wet tantalum technology, which combines a traditional Tantalum Pentoxide anode with a Ruthenium Oxide cathode to create capacitors that excel in the most demanding defense, aerospace, and energy applications.
Backed by a highly experienced technical team, Evans partners with customers to identify the best solution for each application. We also offer complete custom solutions, enabling customers to streamline their processes and meet unique electrical, mechanical, and environmental requirements.
Primary Location:
72 Boyd Ave, E. Providence, RI 02914 (Evans RI), Tel. +1 401.435.3555
Additional Locations:
21421 North 14th Ave. Phoenix, AZ 85027 (Evans AZ)
1625 Main St., Unit 203, Sanford, ME 04073 (Evans ME)
- Radar (T/R Module)
- Power Hold-up (MIL-STD-704 / DO-160)
- Electric Propulsion
- Space (routinely tested to NASA EEE INST-002)
- Oil & Gas
- Directed Energy
- High Energy Laser (HEL)
- High Power Microwave (HPM)
- AI Data Centers
- CUAS Drone Defense
- Missiles

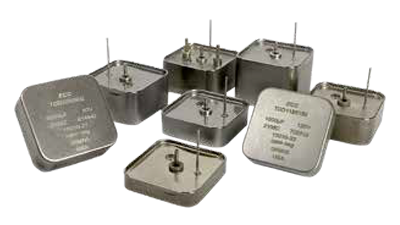

TDD Series
- 1.4” × 1.4” square base (6 heights)
- Voltage range: 10V–125V
- Capacitance range: 1.5mF–300mF
- Ultra-low ESR
- DLA 15010

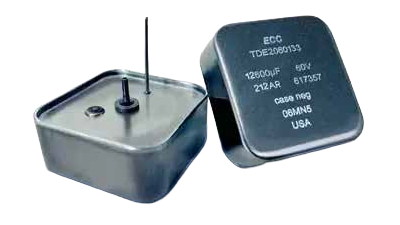

TDE Series
- 1.4” × 1.4” square base (6 heights)
- Voltage range: 60V–110V
- Capacitance range: 2.2mF–25mF
- Highest energy density option within the 60V-110V range
- Ultra-low ESR
THS3 Series
- 1.4” × 1.4” square base
- Voltage range: 10V–125V
- Capacitance range: 4200uF - 200,000uF
- Stud-mount options available
- For legacy designs only
- DLA 09021

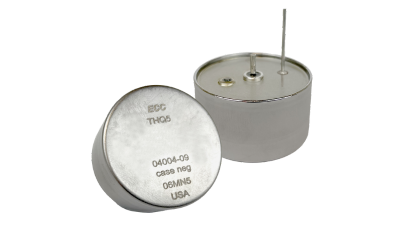

THQ
- 1.4” round base (5 heights)
- Voltage range: 10V–125V
- Capacitance range: 1.1mF–200mF
- Over 20 years of proven field service
- DLA 04001, DLA 04003, DLA 04004, DLA 09022

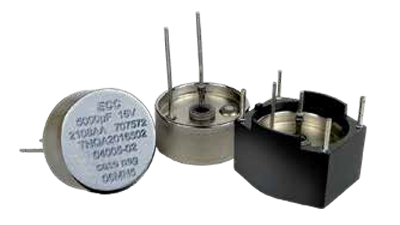

THQA2/M2/S2 Series
- 0.6" round base
- M2 - mounting case option
- S2 - high shock option
- Voltage range: 10V–125V
- Capacitance range: 215uF–10,000uF
- DLA 04005

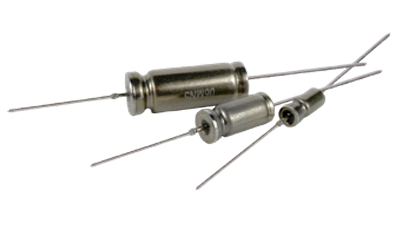

HyCap Series
- Axial form factor
- 3 case sizes - T1, T2, T4
- Voltage range: 10V–150V
- Capacitance range: 2uF - 2700uF
- High temp to 200°C options available
- DLA 10004, DLA 93026

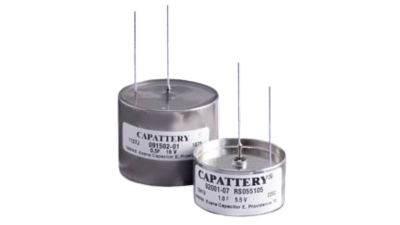

Capattery Series
- Double layer carbon capacitor technology
- Voltage range: 5.5V–11V
- Capacitance range: o.47F–1F
- High shock options available

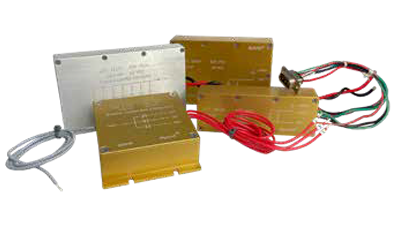

Capacitor Banks
- Assemblies available with 2-18 (or more) internal capacitors
- Typical voltages range from 10VDC to 800VDC
- Configurable to a wide range of capacitance values
- Temperature range of –55 °C to +200 °C (with voltage derating at high temperature)
- Ideal for high shock and vibration environments
