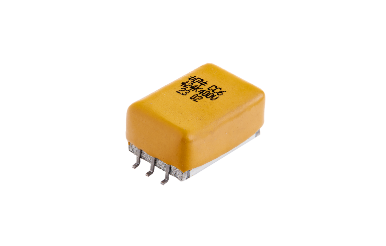

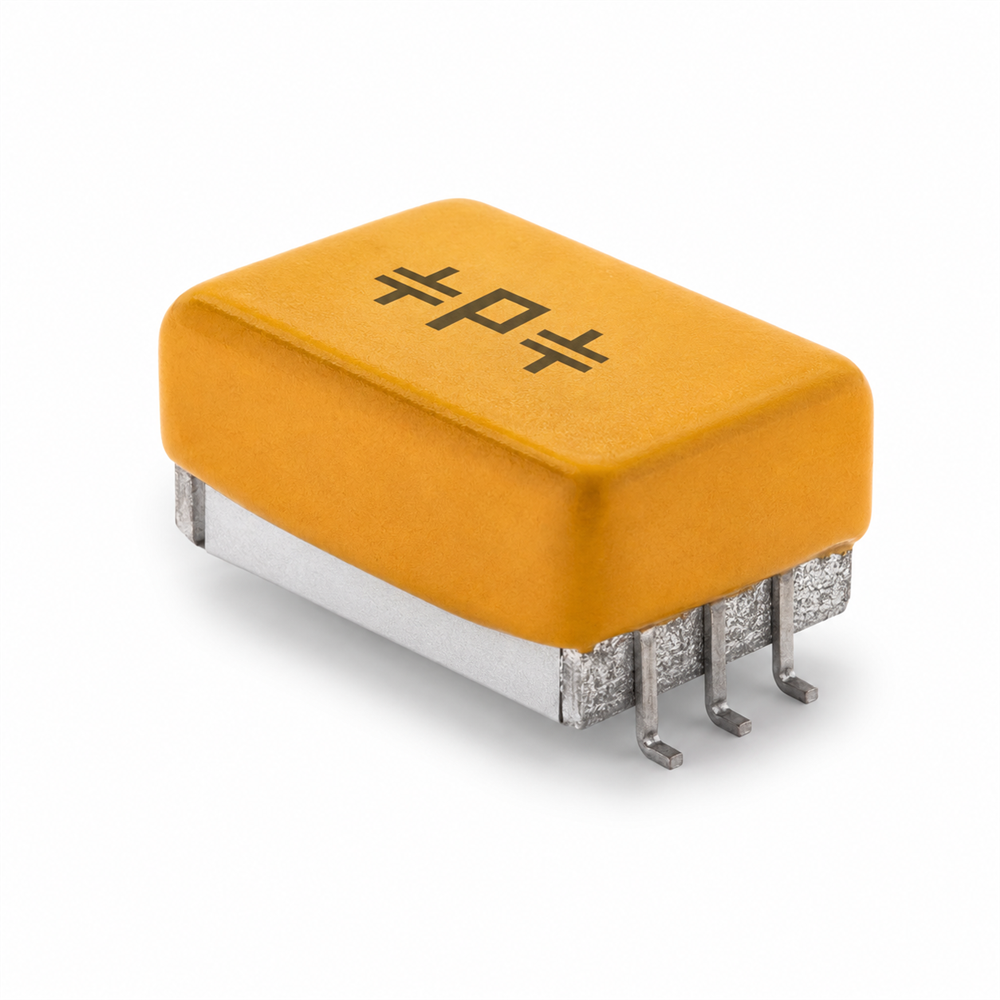

Capstick Series (CC)
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Multilayer Polymer (MLP) Film |
| Grade: | Hi-Rel/ Rugged/High Ripple Current Density |
| Dielectric/Construction: | Non-inductively constructed with metallized polymer dielectric in a parallel plate multilayer polymer (MLP) design. The electrodes use aluminum metallization. The case is UL94V-0 rated epoxy coating with a tinned copper alloy lead-frame and 0.600 in nominal lead spacing. |
| Rated Voltage: | 200 VDC / 140 VAC and 400 VDC / 280 VAC |
| Capacitance: | 0.42 μF to 1.8 μF @ 1 kHz |
| Sizes: | W max: 0.700 in (17.8 mm) T max: 0.320 in (8.1 mm) L max: 0.460 in (11.7 mm) or 0.880 in (22.4 mm) |
| Operating Temp: | -55 °C to +150°C |
Overview
Paktron's Capstick CC Series is a high performance non- polarized MLP film capacitor family designed for high ripple current, low ESR/ESL, and compact volumetric efficiency in high-frequency power applications. The family includes both thru-hole and gull-wing surface-mount options and is specifically positioned for high frequency switching power supplies and DC-to-DC converters. The Capstick capacitors have “true” voltage ratings and do not require the same derating practices some other dielectric systems use to achieve reliability targets.
Additional Features
- Surface-mount capability
- Ideal for high frequency switching power supplies and DC to DC converters
- Low ESR/ESL
- High ripple current/high capacitance
- Volumetrically efficient
- Non-polarized

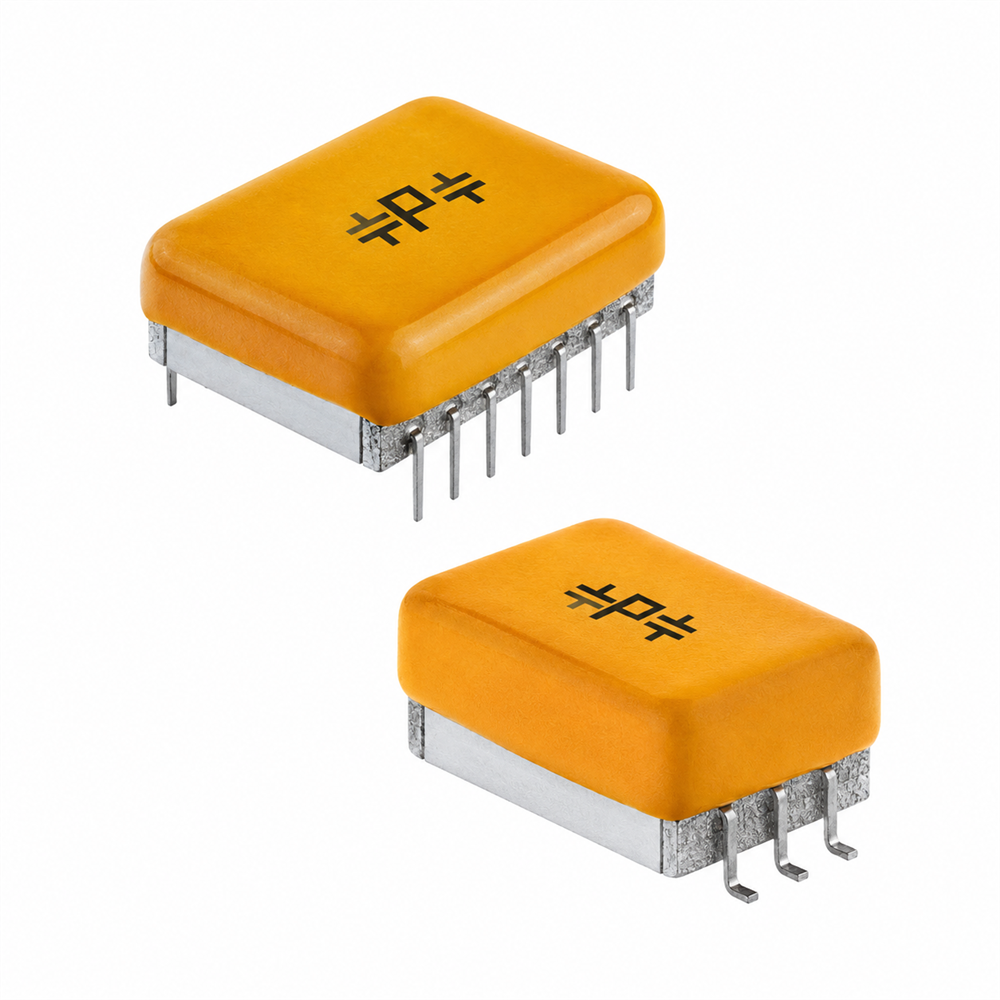

- Available in thru-hole and gull-wing lead configurations
Typical Applications
- Resonant circuits
- High ripple current power designs
- High-frequency power electronics
- Surface-mount power assemblies
- Lightweight alternatives to equivalent MLCCs
