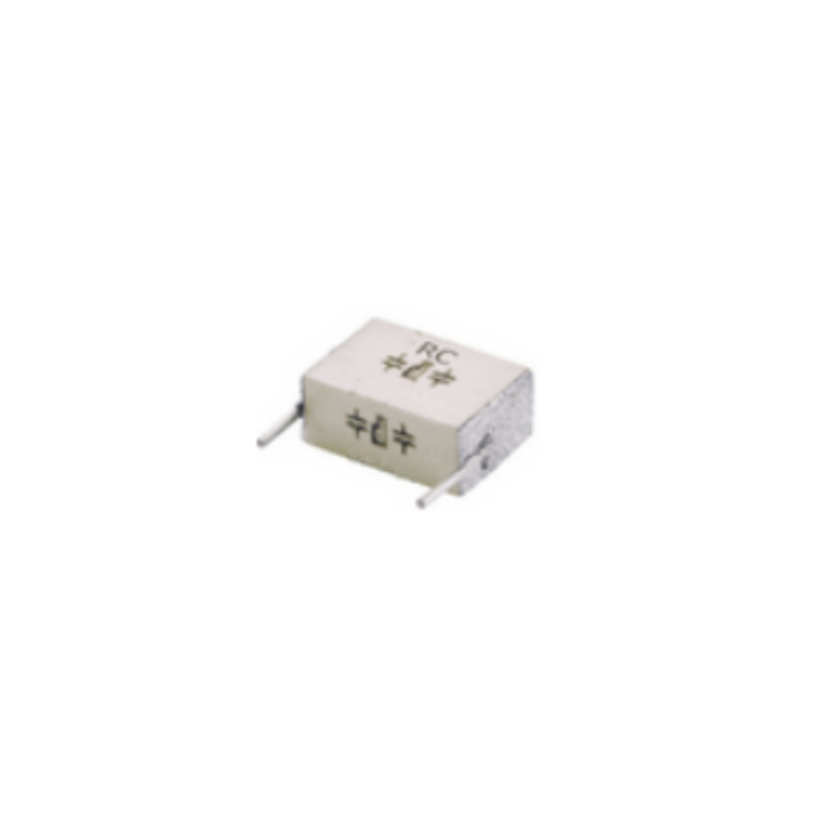

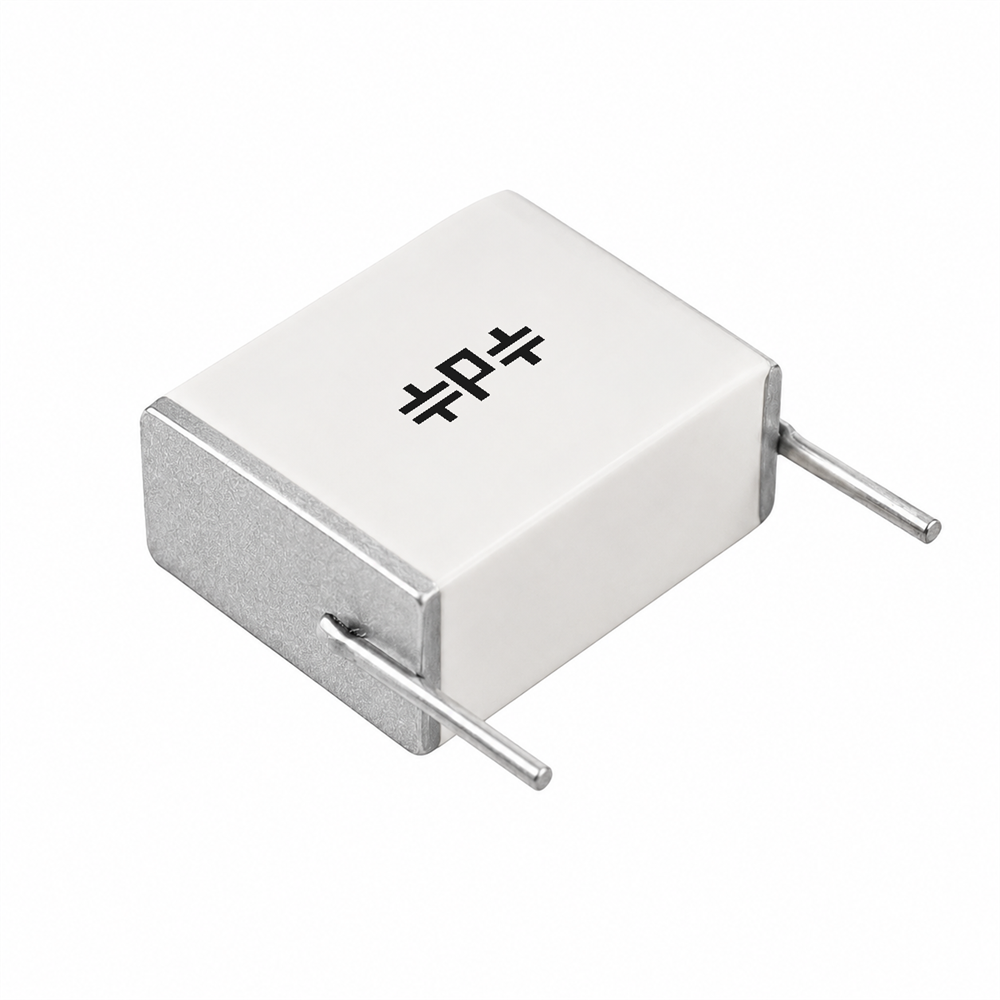

Angstor Series (RC)
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Multilayer Polymer (MLP) Film |
| Grade: | Hi-Rel/ Rugged |
| Dielectric/Construction: | Metallized polymer dielectric in a non-inductively constructed parallel plate multilayer polymer (MLP) design |
| Rated Voltage: | 200 VDC / 140 VAC and 400 VDC / 280 VAC |
| Capacitance: | 0.42 μF to 0.84 μF @ 1 kHz |
| Sizes: | L max: 0.650 in (16.5 mm) T max: 0.290 in (7.4 mm) H max: 0.440 in (11.1 mm) |
| Operating Temp: | -55 °C to +150 °C |
Overview
Angstor RC is a stacked metallized polymer capacitor designed for very high ripple current, low losses at high frequency, and resonant-circuit performance in a compact, rugged package. The series uses a novel metallized polymer dielectric with ultra-low DF, self-healing properties, ultra-low ESR/ESL, and extended operating temperature capability. It is also lightweight, at less than 25% of an equivalent MLCC, making it attractive where high- frequency performance and mechanical efficiency are both important.
Additional Features
- Highest ripple current CV ratings in the industry
- Novel dielectric material with ultra-low DF, high operating temperature, and self-healing properties
- Ultra-low ESR/ESL
- Lightweight, less than 25% of equivalent MLCC
- Low losses at high frequency
- Excellent for resonant circuits
- High dv/dt
- Efficient size
- Rugged construction
Typical Applications
- Resonant circuits
- High ripple current power designs
- High-frequency power conversion
- Lightweight alternatives to equivalent MLCC solutions
- Harsh-environment electronic systems requiring rugged polymer construction
