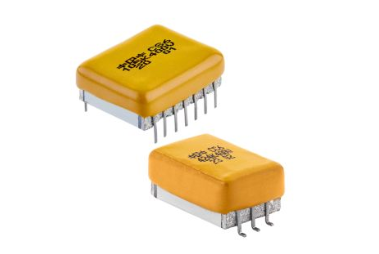

Capstick Series(CS11)

Product Series Specifications

General Parameters
Type:	Multilayer Polymer (MLP) Film
Grade:	Hi-Rel/ Rugged/High Voltage
Dielectric/Construction:	Non-inductively constructed with metallized polyester dielectric (polyethylene terephthalate) in a parallel plate multilayer polymer (MLP) design. The electrodes use aluminum metallization. The case is UL94V-0 rated epoxy coating with a tinned copper alloy lead-frame.
Rated Voltage:	000 VDC / 500 VAC and 1200 VDC / 630 VAC
Capacitance:	0.42 μF to 1.8 μF @ 1 kHz
Sizes:	CS11 package with 1.22 in max width, 1.1 to 1.2 in max length, 0.39 to 0.57 in max thickness, and 1.1 in nominal lead spacing
Operating Temp:	-55 °C to +125°C

Datasheet

Request a Quote

Talk to an Engineer

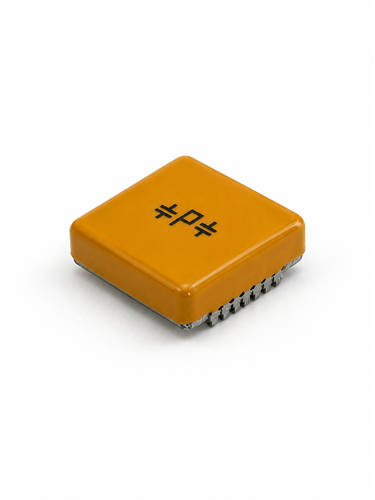

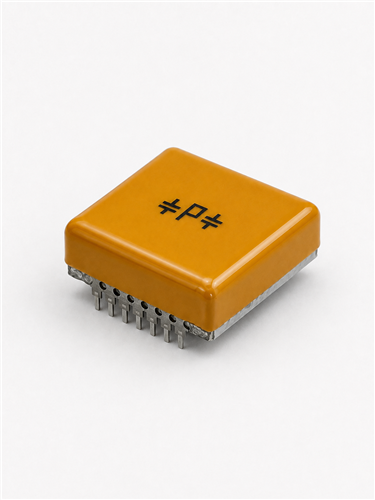

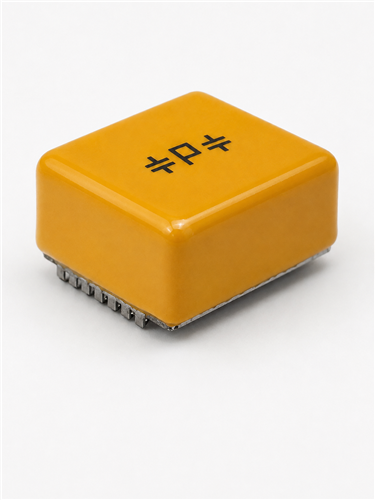

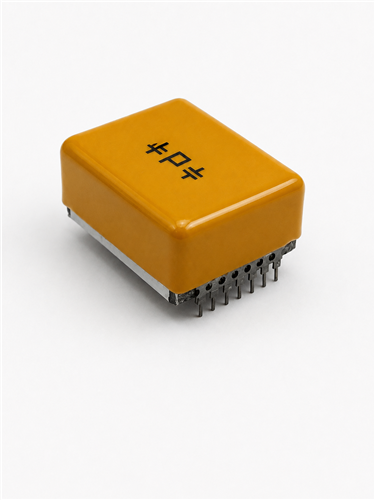

Paktron's CS11 is a high-voltage Capstick stacked metallized polyester capacitor designed for high ripple current, high capacitance density, and low-loss high-frequency performance in a rugged package. It extends the Capstick family into 1000 VDC and 1200 VDC ratings while offering thru-hole, SMD gull- wing, and SMD J-lead configurations. The series combines ultra-low ESR/ESL, self-healing behavior, and lightweight construction compared with equivalent MLCC solutions.

Surface-mount capability
Ideal for high frequency switching power supplies and DC to DC converters
Low ESR / ESL
High ripple current / high capacitance
Volumetrically efficient
Non-polarized

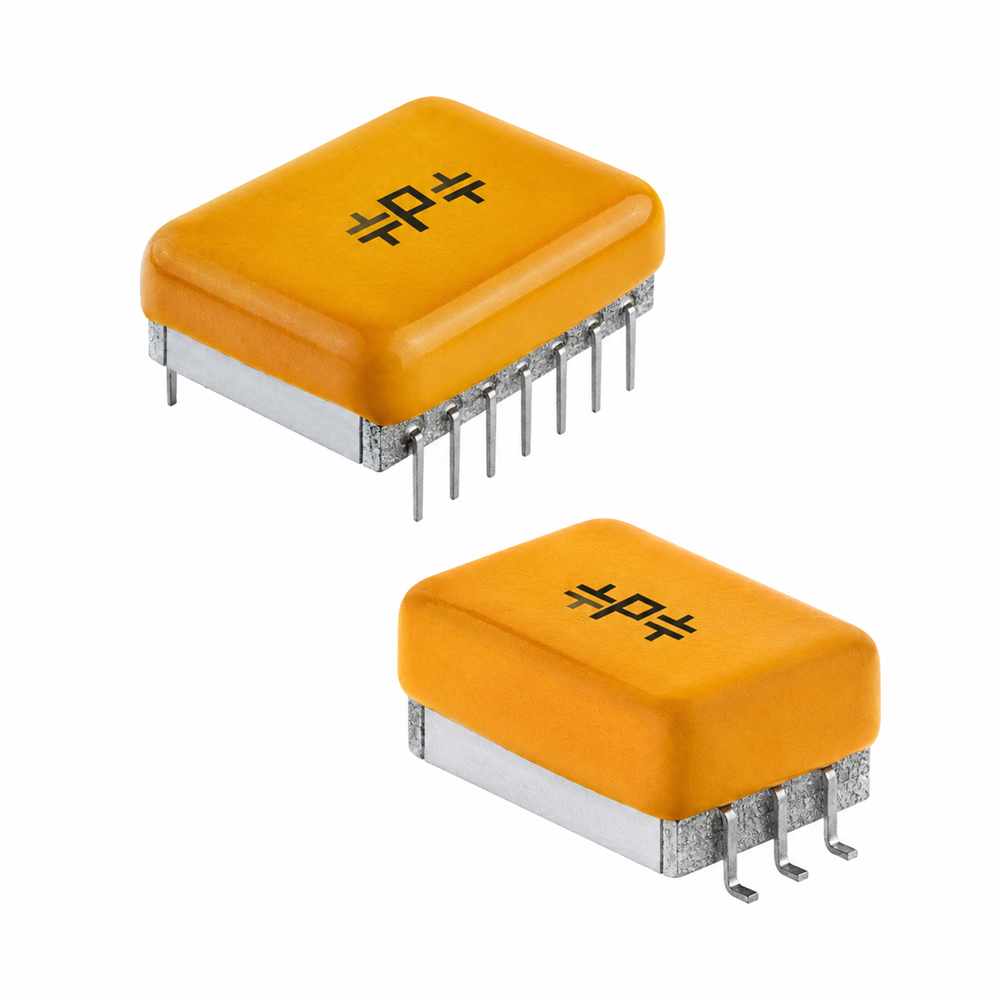

Available in thru-hole and gull-wing lead configurations

High-voltage power conversion
High ripple current filtering
DC link and bus applications
High-frequency power electronics
Designs needing thru-hole or surface-mount high-voltage film capacitor options

Product	DLA PN	Brand	Capacitor Type	Voltage DC	Capacitance	Operating Temperature Range	Product Family	Voltage Rating - AC	Tolerance	Dielectric	Case Size	ESR (mΩ)	Termination	Lead Spacing (in/mm)	Mounting Type	Dimension (in/mm)	RoHS
TDD1010603	15010-01	Evans	Hybrid Wet Tantalum	10	60000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1016403	15010-05	Evans	Hybrid Wet Tantalum	16	40000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1025243	15010-09	Evans	Hybrid Wet Tantalum	25	24000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1035163	15010-13	Evans	Hybrid Wet Tantalum	35	16000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1050113	15010-17	Evans	Hybrid Wet Tantalum	50	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1063472	15010-21	Evans	Hybrid Wet Tantalum	63	4700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1080302	15010-25	Evans	Hybrid Wet Tantalum	80	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	55	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1100222	15010-29	Evans	Hybrid Wet Tantalum	100	2200uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1110202	15010-37	Evans	Hybrid Wet Tantalum	110	2000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	85	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1125152	15010-33	Evans	Hybrid Wet Tantalum	125	1500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD2010124	15010-02	Evans	Hybrid Wet Tantalum	10	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2016803	15010-06	Evans	Hybrid Wet Tantalum	16	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2025483	15010-10	Evans	Hybrid Wet Tantalum	25	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2035323	15010-14	Evans	Hybrid Wet Tantalum	35	32000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2050223	15010-18	Evans	Hybrid Wet Tantalum	50	22000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2063942	15010-22	Evans	Hybrid Wet Tantalum	63	9400uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2080602	15010-26	Evans	Hybrid Wet Tantalum	80	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2100442	15010-30	Evans	Hybrid Wet Tantalum	100	4430uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)	-
TDD2110402	15010-38	Evans	Hybrid Wet Tantalum	110	4000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2125302	15010-34	Evans	Hybrid Wet Tantalum	125	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	45	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD3010184	15010-03	Evans	Hybrid Wet Tantalum	10	180000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3016124	15010-07	Evans	Hybrid Wet Tantalum	16	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3025723	15010-11	Evans	Hybrid Wet Tantalum	25	72000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3035483	15010-15	Evans	Hybrid Wet Tantalum	35	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3050333	15010-19	Evans	Hybrid Wet Tantalum	50	33000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3063143	15010-23	Evans	Hybrid Wet Tantalum	63	14000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3080902	15010-27	Evans	Hybrid Wet Tantalum	80	9000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	18	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3100662	15010-31	Evans	Hybrid Wet Tantalum	100	6600uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3110602	15010-39	Evans	Hybrid Wet Tantalum	110	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3125452	15010-35	Evans	Hybrid Wet Tantalum	125	4500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD4010244	15010-04	Evans	Hybrid Wet Tantalum	10	240000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4016164	15010-08	Evans	Hybrid Wet Tantalum	16	160000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4025963	15010-12	Evans	Hybrid Wet Tantalum	25	96000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4050443	15010-20	Evans	Hybrid Wet Tantalum	50	44000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4063183	15010-24	Evans	Hybrid Wet Tantalum	63	18000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4080123	15010-28	Evans	Hybrid Wet Tantalum	80	12000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4100882	15010-32	Evans	Hybrid Wet Tantalum	100	8800uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4110802	15010-40	Evans	Hybrid Wet Tantalum	110	8000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4125602	15010-36	Evans	Hybrid Wet Tantalum	125	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD5010304	15010-41	Evans	Hybrid Wet Tantalum	10	300000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5016204	15010-42	Evans	Hybrid Wet Tantalum	16	200000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5025124	15010-43	Evans	Hybrid Wet Tantalum	25	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5035803	15010-44	Evans	Hybrid Wet Tantalum	35	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5050553	15010-45	Evans	Hybrid Wet Tantalum	50	55000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5063223	15010-46	Evans	Hybrid Wet Tantalum	63	22700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5080153	15010-47	Evans	Hybrid Wet Tantalum	80	15000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5100113	15010-48	Evans	Hybrid Wet Tantalum	100	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5110103	15010-49	Evans	Hybrid Wet Tantalum	110	10000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5125752	15010-50	Evans	Hybrid Wet Tantalum	125	7500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD4035643	15010-16	Evans	Hybrid Wet Tantalum	35	64000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
