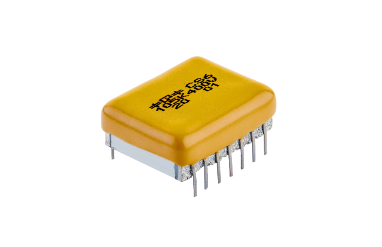

Capstick Series (CS)

Product Series Specifications

General Parameters
Type: Multilayer Polymer (MLP) Film
Grade: Hi-Rel/ Rugged
Dielectric/Construction: Non-inductively constructed with metallized polyester dielectric (polyethylene terephthalate) in a parallel plate multilayer polymer (MLP) design. Electrodes use aluminum metallization. The case uses UL94V-0 rated epoxy coating, and the lead-frame material is tinned copper alloy.
Rated Voltage: 50 VDC to 500 VDC, depending on case size and configuration
Capacitance: 00.33 μF to 20.0 μF @ 1 kHz
Sizes: CS4 and CS6 case platforms, each offered in thru-hole and gull-wing SMD versions
Operating Temp: -55 °C to +125 °C
Capstick Series (CS)
Product image is for representation purposes only. Refer to the product datasheet for exact specifications.

Overview

Paktron's Capstick CS Series is a high performance non- polarized MLP film capacitor family designed for high ripple current, low ESR/ESL, and compact volumetric efficiency in high-frequency power applications. The family includes both thru-hole and gull-wing surface-mount options and is specifically positioned for high frequency switching power supplies and DC-to-DC converters. The Capstick capacitors have “true” voltage ratings and do not require the same derating practices some other dielectric systems use to achieve reliability targets.

Additional Features

  • Surface-mount capability
  • Ideal for high frequency switching power supplies and DC to DC converters
  • Low ESR/ESL
  • High ripple current/high capacitance
  • Volumetrically efficient
  • Non-polarized

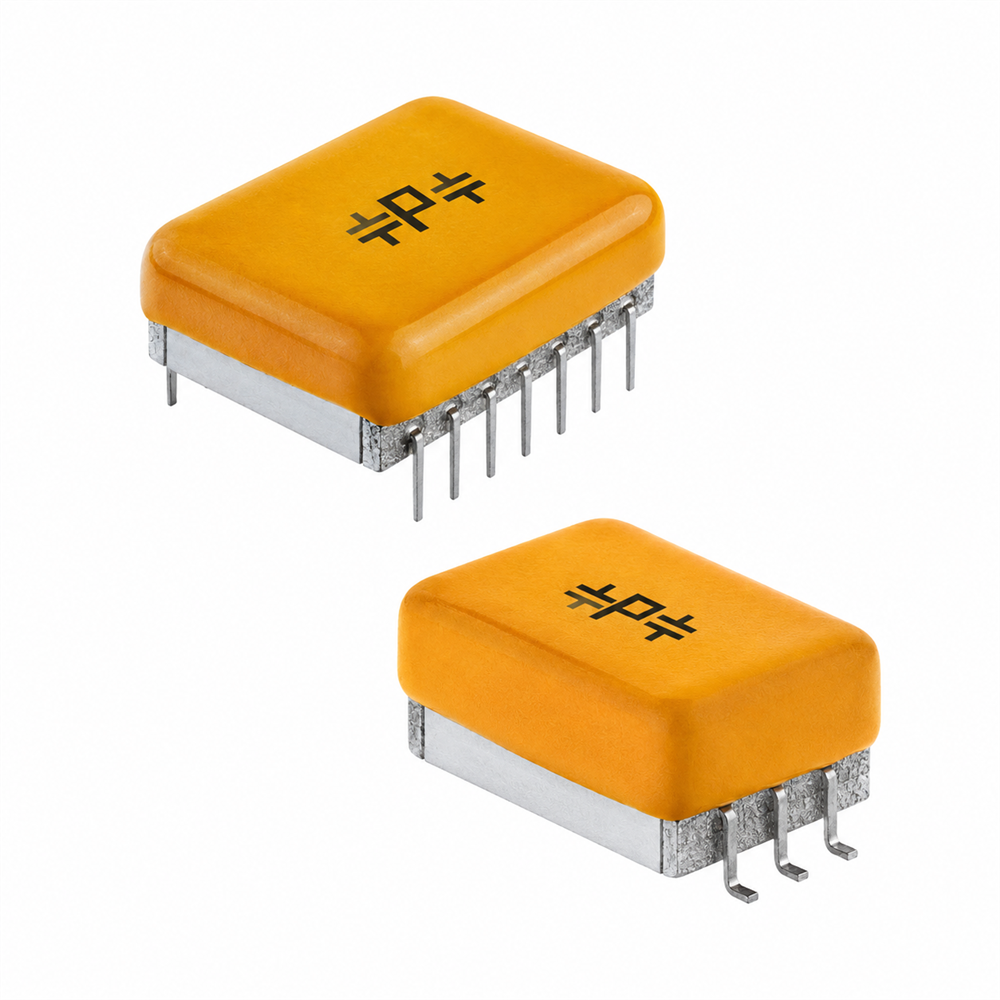

  • Available in thru-hole and gull-wing lead configurations

Typical Applications

  • High frequency switching power supplies
  • DC to DC converters
  • High ripple current filtering
  • Compact high-capacitance power designs
  • Surface-mount or thru-hole power electronics assemblies

Parametric Search

Applied Filters: Brand: paktron Series: cs
Loading filters…
Brand
Capacitor Type
Product Family
Series
Voltage DC
Capacitance
ESR (mΩ)

Additional Filters

Apply FiltersReset All
Results: 52
CompareImageProductDLA PNBrandCapacitor TypeProduct FamilySeriesVoltage DCCapacitanceESR (mΩ)Operating Temperature RangeVoltage Rating - ACToleranceDielectricCase SizeTerminationLead Spacing (in/mm)Mounting Type# LeadsDimension (in/mm)RoHS
105K250CS6
105K250CS6
-
PaktronFilmCapstick®CS2501 uF12-55°C to +125°C160V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole3L 0.440" (11.2mm) x W 0.700" (17.8mm) x H 0.300" (7.5mm)No
105K250CS6-FA
105K250CS6-FA
-
PaktronFilmCapstick®CS2501 uF12-55°C to +125°C160V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole3L 0.440" (11.2mm) x W 0.700" (17.8mm) x H 0.300" (7.5mm)Yes
105K400CS6
105K400CS6
-
PaktronFilmCapstick®CS4001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole7L 0.880" (22.4mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
105K400CS6-FA
105K400CS6-FA
-
PaktronFilmCapstick®CS4001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole7L 0.880" (22.4mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
105K500CS6
105K500CS6
-
PaktronFilmCapstick®CS5001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole8L 1.135" (28.8mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
105K500CS6-FA
105K500CS6-FA
-
PaktronFilmCapstick®CS5001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole8L 1.135" (28.8mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
106K050CS4
106K050CS4
-
PaktronFilmCapstick®CS5010 uF3-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole5L 0.620" (15.7mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)No
106K050CS4-FA
106K050CS4-FA
-
PaktronFilmCapstick®CS5010 uF3-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole5L 0.620" (15.7mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)Yes
106K050CS4G
106K050CS4G
-
PaktronFilmCapstick®CS5010 uF3-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD5L 0.620" (15.7mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)No
106K100CS4
106K100CS4
-
PaktronFilmCapstick®CS10010 uF3-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole7L 0.995" (25.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
106K100CS4-FA
106K100CS4-FA
-
PaktronFilmCapstick®CS10010 uF3-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole7L 0.995" (25.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
106K100CS4G
106K100CS4G
-
PaktronFilmCapstick®CS10010 uF3-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD7L 0.995" (25.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
106K100CS4G-FA
106K100CS4G-FA
-
PaktronFilmCapstick®CS10010 uF3-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD7L 0.995" (25.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
205K100CS4
205K100CS4
-
PaktronFilmCapstick®CS1002 uF9-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
205K100CS4-FA
205K100CS4-FA
-
PaktronFilmCapstick®CS1002 uF9-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
205K100CS4G
205K100CS4G
-
PaktronFilmCapstick®CS1002 uF9-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
205K100CS4G-FA
205K100CS4G-FA
-
PaktronFilmCapstick®CS1002 uF9-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
206K050CS4
206K050CS4
-
PaktronFilmCapstick®CS5020 uF2.5-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole9L 1.150" (29.2mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)No
206K050CS4-FA
206K050CS4-FA
-
PaktronFilmCapstick®CS5020 uF2.5-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole9L 1.150" (29.2mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)Yes
206K050CS4G
206K050CS4G
-
PaktronFilmCapstick®CS5020 uF2.5-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD9L 1.150" (29.2mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)No
206K050CS4G-FA
206K050CS4G-FA
-
PaktronFilmCapstick®CS5020 uF2.5-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD9L 1.150" (29.2mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)Yes
334K400CS6
334K400CS6
-
PaktronFilmCapstick®CS4000.33 uF12-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole3L 0.435" (11.0mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
334K400CS6-FA
334K400CS6-FA
-
PaktronFilmCapstick®CS4000.33 uF12-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole3L 0.435" (11.0mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
405K100CS4
405K100CS4
-
PaktronFilmCapstick®CS1004 uF7-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
405K100CS4-FA
405K100CS4-FA
-
PaktronFilmCapstick®CS1004 uF7-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
405K100CS4G
405K100CS4G
-
PaktronFilmCapstick®CS1004 uF7-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
405K100CS4G-FA
405K100CS4G-FA
-
PaktronFilmCapstick®CS1004 uF7-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD3L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
474K400CS6
474K400CS6
-
PaktronFilmCapstick®CS4000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole3L 0.460" (11.7mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
474K400CS6-FA
474K400CS6-FA
-
PaktronFilmCapstick®CS4000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole3L 0.460" (11.7mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
474K500CS6
474K500CS6
-
PaktronFilmCapstick®CS5000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)Thru-hole4L 0.625" (15.9mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
474K500CS6-FA
474K500CS6-FA
-
PaktronFilmCapstick®CS5000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)Thru-hole4L 0.625" (15.9mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
475K100CS4
475K100CS4
-
PaktronFilmCapstick®CS1004.7 uF6-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole3L 0.525" (13.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
475K100CS4-FA
475K100CS4-FA
-
PaktronFilmCapstick®CS1004.7 uF6-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole3L 0.525" (13.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
475K100CS4G
475K100CS4G
-
PaktronFilmCapstick®CS1004.7 uF6-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD3L 0.525" (13.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
475K100CS4G-FA
475K100CS4G-FA
-
PaktronFilmCapstick®CS1004.7 uF6-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD3L 0.525" (13.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
685K100CS4
685K100CS4
-
PaktronFilmCapstick®CS1006.8 uF5-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)Thru-hole5L 0.700" (17.8mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
685K100CS4-FA
685K100CS4-FA
-
PaktronFilmCapstick®CS1006.8 uF5-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)Thru-hole5L 0.700" (17.8mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
685K100CS4G
685K100CS4G
-
PaktronFilmCapstick®CS1006.8 uF5-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn63/Pb370.394" (10mm)SMD5L 0.700" (17.8mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)No
685K100CS4G-FA
685K100CS4G-FA
-
PaktronFilmCapstick®CS1006.8 uF5-55°C to +125°C80V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD5L 0.700" (17.8mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)Yes
105K250CS6G-FA
105K250CS6G-FA
-
PaktronFilmCapstick®CS2501 uF12-55°C to +125°C160V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD3L 0.440" (11.2mm) x W 0.700" (17.8mm) x H 0.300" (7.5mm)Yes
105K400CS6G-FA
105K400CS6G-FA
-
PaktronFilmCapstick®CS4001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD7L 0.880" (22.4mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
105K500CS6G
105K500CS6G
-
PaktronFilmCapstick®CS5001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD8L 1.135" (28.8mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
105K500CS6G-FA
105K500CS6G-FA
-
PaktronFilmCapstick®CS5001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD8L 1.135" (28.8mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
106K050CS4G-FA
106K050CS4G-FA
-
PaktronFilmCapstick®CS5010 uF3-55°C to +125°C35V±10%Metallized Polyester (PET)
-
Sn Alloy0.394" (10mm)SMD5L 0.620" (15.7mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)Yes
334K400CS6G
334K400CS6G
-
PaktronFilmCapstick®CS4000.33 uF12-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD3L 0.435" (11.0mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
334K400CS6G-FA
334K400CS6G-FA
-
PaktronFilmCapstick®CS4000.33 uF12-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD3L 0.435" (11.0mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
474K400CS6G-FA
474K400CS6G-FA
-
PaktronFilmCapstick®CS4000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD3L 0.460" (11.7mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
474K500CS6G
474K500CS6G
-
PaktronFilmCapstick®CS5000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD4L 0.625" (15.9mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
474K500CS6G-FA
474K500CS6G-FA
-
PaktronFilmCapstick®CS5000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn Alloy0.591" (15mm)SMD4L 0.625" (15.9mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)Yes
105K250CS6G
105K250CS6G
-
PaktronFilmCapstick®CS2501 uF12-55°C to +125°C160V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD3L 0.440" (11.2mm) x W 0.700" (17.8mm) x H 0.300" (7.5mm)No
105K400CS6G
105K400CS6G
-
PaktronFilmCapstick®CS4001 uF8-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD7L 0.880" (22.4mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
474K400CS6G
474K400CS6G
-
PaktronFilmCapstick®CS4000.47 uF11-55°C to +125°C250V±10%Metallized Polyester (PET)
-
Sn63/Pb370.591" (15mm)SMD3L 0.460" (11.7mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)No
