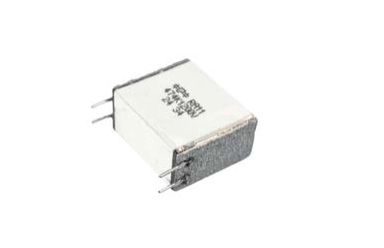

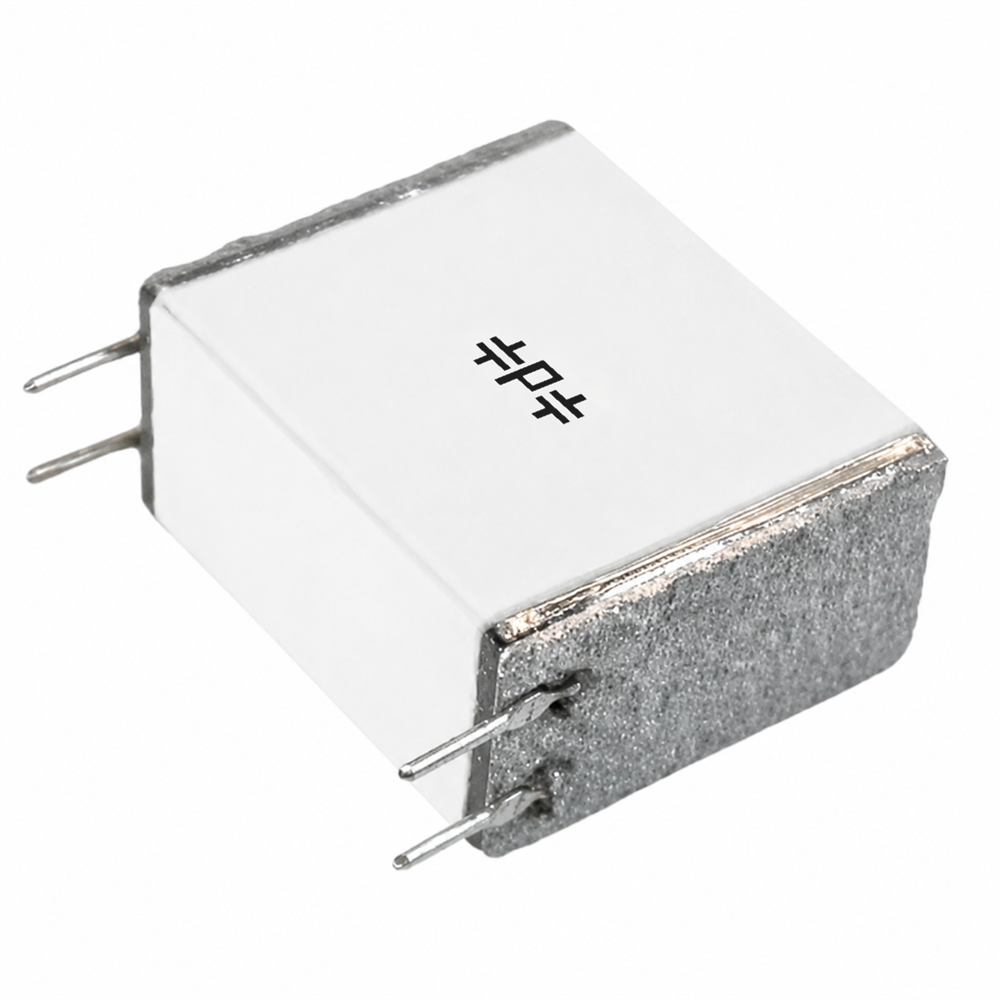

Angstor Series (RA11)

Product Series Specifications

General Parameters
Type:	Multilayer Polymer (MLP) Film
Grade:	Hi-Rel/ Rugged
Dielectric/Construction:	Metallized polyester dielectric in a non-inductively constructed parallel plate multilayer polymer (MLP) design. The dielectric is specifically identified as polyethylene terephthalate. The electrodes use aluminum metallization, and the case is a polyester tape wrap.
Rated Voltage:	1000 VDC / 500 VAC and 1200 VDC / 630 VAC
Capacitance:	0.8 μF at 1000 VDC 0.47 μF at 1200 VDC
Sizes:	L max: 1.15 in [29.2 mm] H max: 1.05 in [26.7 mm]
Operating Temp:	-55 °C to +125 °C

Datasheet

Request a Quote

Talk to an Engineer

Paktron's RA11 is a high-voltage stacked metallized polyester capacitor designed for high ripple current, high capacitance density, and low-loss high-frequency performance in a rugged package. It extends the Angstor family into 1000 VDC and 1200 VDC ratings while maintaining ultra-low ESR/ESL, self-healing behavior, and lightweight construction compared with equivalent MLCCs.

High voltage ratings
High ripple current ratings
High capacitance density
Ultra-low ESR/ESL
Lightweight, less than 25% of equivalent MLCC
Low losses at high frequency
Self-healing
Rugged construction

High-voltage power conversion
High ripple current filtering
DC link and bus applications
High-frequency power electronics
Designs needing lightweight, rugged alternatives to high-voltage MLCC solutions

Product	DLA PN	Brand	Capacitor Type	Voltage DC	Capacitance	Operating Temperature Range	Product Family	Voltage Rating - AC	Tolerance	Dielectric	Case Size	ESR (mΩ)	Termination	Lead Spacing (in/mm)	Mounting Type	Dimension (in/mm)	RoHS
424K400RC6	-	Paktron	Film	400V	0.42uF	-55°C - 150°C	Angstor®	280V	±10%	Metallized Polyester (PET)	-	13mOhm	PC Pins	0.591" (15mm)	Thru-hole	0.650" L x 0.290" W (16.5mm x 7.4mm)	-
424K400RC6-FA	-	Paktron	-	400V	0.42uF	-55°C - 150°C	Angstor®	280V	±10%	Polymer, Metallized	-	13mOhm	PC Pins	0.591" (15mm)	Thru-hole	0.650" L x 0.290" W (16.5mm x 7.4mm)	-
844K200RC6	-	Paktron	Film	200V	0.84uF	-55°C - 150°C	Angstor®	140V	±10%	Polymer, Metallized	-	17mOhm	PC Pins	0.591" (15mm)	Thru-hole	0.650" L x 0.290" W (16.5mm x 7.4mm)	-
844K200RC6-FA	-	Paktron	-	200V	0.84uF	-55°C - 150°C	Angstor®	140V	±10%	Polymer, Metallized	-	17mOhm	PC Pins	0.591" (15mm)	Thru-hole	0.650" L x 0.290" W (16.5mm x 7.4mm)	-
104K250RA4	-	Paktron	Film	250	0.1 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.160" (4.1mm) x H 0.255" (6.5mm)	No
104K250RA4-FA	-	Paktron	Film	250	0.1 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.160" (4.1mm) x H 0.255" (6.5mm)	Yes
105K100RA4	-	Paktron	Film	100	1 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.175" (4.4mm) x H 0.285" (7.2mm)	No
105K100RA4-FA	-	Paktron	Film	100	1 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.175" (4.4mm) x H 0.285" (7.2mm)	Yes
105K250RA6	-	Paktron	Film	250	1 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	8	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.240" (6.1mm) x H 0.340" (8.6mm)	No
105K250RA6-FA	-	Paktron	Film	250	1 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	8	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.240" (6.1mm) x H 0.340" (8.6mm)	Yes
106K100RA6	-	Paktron	Film	100	10 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	5	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.260" (6.6mm) x H 0.460" (11.7mm)	No
106K100RA6-FA	-	Paktron	Film	100	10 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	5	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.260" (6.6mm) x H 0.460" (11.7mm)	Yes
224K100RA3	-	Paktron	Film	100	0.22 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.155" (3.9mm) x H 0.280" (7.1mm)	No
224K100RA3-FA	-	Paktron	Film	100	0.22 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.155" (3.9mm) x H 0.280" (7.1mm)	Yes
224K250RA4	-	Paktron	Film	250	0.22 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.190" (4.8mm) x H 0.305" (7.7mm)	No
224K250RA4-FA	-	Paktron	Film	250	0.22 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.190" (4.8mm) x H 0.305" (7.7mm)	Yes
224K400RA6	-	Paktron	Film	400	0.22 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.230" (5.8mm) x H 0.340" (8.6mm)	No
224K400RA6-FA	-	Paktron	Film	400	0.22 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.230" (5.8mm) x H 0.340" (8.6mm)	Yes
225K100RA3	-	Paktron	Film	100	2.2 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.250" (6.3mm) x H 0.350" (8.9mm)	No
225K100RA3-FA	-	Paktron	Film	100	2.2 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.250" (6.3mm) x H 0.350" (8.9mm)	Yes
225K100RA4	-	Paktron	Film	100	2.2 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.205" (5.2mm) x H 0.285" (7.2mm)	No
225K100RA4-FA	-	Paktron	Film	100	2.2 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.205" (5.2mm) x H 0.285" (7.2mm)	Yes
334K250RA4	-	Paktron	Film	250	0.33 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.250" (6.3mm) x H 0.330" (8.4mm)	No
334K250RA4-FA	-	Paktron	Film	250	0.33 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.250" (6.3mm) x H 0.330" (8.4mm)	Yes
335K100RA4	-	Paktron	Film	100	3.3 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.250" (6.3mm) x H 0.350" (8.9mm)	No
335K100RA4-FA	-	Paktron	Film	100	3.3 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.250" (6.3mm) x H 0.350" (8.9mm)	Yes
405K100RA4	-	Paktron	Film	100	4 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.200" (5.1mm) x H 0.380" (9.7mm)	No
405K100RA4-FA	-	Paktron	Film	100	4 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.200" (5.1mm) x H 0.380" (9.7mm)	Yes
474K100RA3	-	Paktron	Film	100	0.47 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.180" (4.6mm) x H 0.305" (7.7mm)	No
474K100RA3-FA	-	Paktron	Film	100	0.47 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.295" (7.5mm)	Thru-hole	L 0.350" (8.9mm) x W 0.180" (4.6mm) x H 0.305" (7.7mm)	Yes
474K1200RA11	-	Paktron	Film	1200	0.47 uF	-55°C to +125°C	Angstor®	630V	±10%	Metallized Polyester (PET)	-	33	Sn63/Pb37	1.1" (27.5mm)	Thru-hole	L 1.15" (29.2mm) x W 0.53" (13.5mm) x H 1.05" (26.7mm)	No
474K1200RA11-FA	-	Paktron	Film	1200	0.47 uF	-55°C to +125°C	Angstor®	630V	±10%	Metallized Polyester (PET)	-	33	Sn Alloy	1.1" (27.5mm)	Thru-hole	L 1.15" (29.2mm) x W 0.53" (13.5mm) x H 1.05" (26.7mm)	Yes
474K250RA4	-	Paktron	Film	250	0.47 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.210" (5.3mm) x H 0.305" (7.7mm)	No
474K250RA4-FA	-	Paktron	Film	250	0.47 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.210" (5.3mm) x H 0.305" (7.7mm)	Yes
474K250RA6	-	Paktron	Film	250	0.47 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	12	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.230" (5.8mm) x H 0.340" (8.6mm)	No
474K250RA6-FA	-	Paktron	Film	250	0.47 uF	-55°C to +125°C	Angstor®	160V	±10%	Metallized Polyester (PET)	-	12	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.230" (5.8mm) x H 0.340" (8.6mm)	Yes
474K400RA6	-	Paktron	Film	400	0.47 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.290" (7.4mm) x H 0.440" (11.1mm)	No
474K400RA6-FA	-	Paktron	Film	400	0.47 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.290" (7.4mm) x H 0.440" (11.1mm)	Yes
504K500RA6	-	Paktron	Film	500	0.5 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn63/Pb37	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.280" (7.1mm) x H 0.540" (13.7mm)	No
504K500RA6-FA	-	Paktron	Film	500	0.5 uF	-55°C to +125°C	Angstor®	250V	±10%	Metallized Polyester (PET)	-	12	Sn Alloy	0.591" (15mm)	Thru-hole	L 0.650" (16.5mm) x W 0.280" (7.1mm) x H 0.540" (13.7mm)	Yes
505K100RA4	-	Paktron	Film	100	5 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn63/Pb37	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.220" (5.6mm) x H 0.480" (12.2mm)	No
505K100RA4-FA	-	Paktron	Film	100	5 uF	-55°C to +125°C	Angstor®	80V	±10%	Metallized Polyester (PET)	-	6	Sn Alloy	0.394" (10mm)	Thru-hole	L 0.450" (11.4mm) x W 0.220" (5.6mm) x H 0.480" (12.2mm)	Yes
804K1000RA11	-	Paktron	Film	1000	0.8 uF	-55°C to +125°C	Angstor®	500V	±10%	Metallized Polyester (PET)	-	28	Sn63/Pb37	1.1" (27.5mm)	Thru-hole	L 1.15" (29.2mm) x W 0.35" (8.9mm) x H 1.05" (26.7mm)	No
804K1000RA11-FA	-	Paktron	Film	1000	0.8 uF	-55°C to +125°C	Angstor®	500V	±10%	Metallized Polyester (PET)	-	28	Sn Alloy	1.1" (27.5mm)	Thru-hole	L 1.15" (29.2mm) x W 0.35" (8.9mm) x H 1.05" (26.7mm)	Yes
