RC snubber network for arc suppression, non-polarized
Grade:
Industrial / Control / UL/CSA-recognized option available
Dielectric/Construction:

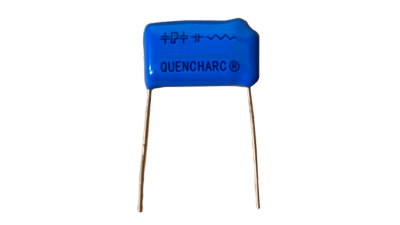

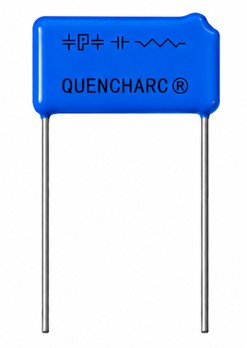

Quencharc is an RC suppression network that combines a metallized polyester capacitor with an integrated series resistor in a UL94V-0 flame-retardant epoxy-coated assembly.
Rated Voltage:
125 VAC to 660 VAC
Capacitance:
0.1 μF to 1.0 μ
Sizes:
The series includes several package sizes depending on capacitance/voltage/type
Paktron's Quencharc is an energy-efficient RC snubber network designed for arc suppression and transient control. It is used for relay contact protection, dv/dt suppression on thyristors and triacs, noise reduction on controllers and drivers, and EMI/RFI reduction. The RC network suppresses the transient voltage that appears when contacts open, helping prevent arcing while also limiting in rush current when contacts close.
Additional Features
Relay contact protection
dv/dt suppression on thyristors and triacs
No lag time in suppression
UL/CSA version available as QRL
Noise reduction on controllers/drivers
EMI/RFI reduction
RoHS-6 compliant
Energy-efficient noise suppression
Typical Applications
Relay contact protection
dv/dt suppression on thyristors and triacs
Noise reduction on controllers and drivers
EMI/RFI reduction
Across-the-line suppression with QRL UL/CSA-recognized versions
