THQA2/M2/T2 Series
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Hybrid Wet Tantalum Capacitor |
| Grade: | DLA 04005 / Hi-Rel / Mission-Critical |
| Dielectric/Construction: | Sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte with additives |
| Rated Voltage: | 10V to 125V |
| Capacitance: | 215 μF to 10, 000 μF |
| Sizes: | THQA2: 0.6 in round diameter base THQM2: THQA2 packaged in a 4-pin DAP mount |
| Operating Temp: | -55 °C to +125°C with voltage derating |
Overview

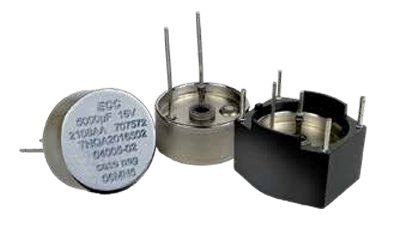

THQA2, THQM2, and THQT2 Hybrid Wet Tantalum capacitors utilize the same base capacitor: a 0.60" round diameter footprint with a 0.274" height. Voltage ratings range from 10V to 125V. This series’ compact form factor makes it ideal for volume-constrained applications.
- The THQA2 style features a legacy terminal configuration that requires spacing for the positive terminal. Please see the datasheet for details.
- The THQM2 style addresses the spacing requirements of the THQA2 by mounting the capacitor in a case. THQM2 capacitors can be mounted to the PCB without modification, but they are a volumetrically larger option.
- The THQT2 style is the recommended option and features a terminal configuration that does not require terminal spacing or unique mounting. THQT2 capacitors come ready to assemble directly to the PCB.
Additional Features
- Standard tolerance: ±20%, with ±10% available
- Hermetically sealed: Welded tantalum case with glass-to-metal anode terminal seal
- Standard terminals: 60/40 SnPb plated nickel wire
- Unlimited shelf life
- Life: >2,000 hours at 85 °C and rated voltage
- REACH compliant
- LF options available
Typical Applications
- High-reliability power electronics
- Defense and aerospace electronics
- Bulk energy storage and filtering
- Compact board-mounted hold-up and filtering applications
- Designs requiring hermetically sealed hybrid wet tantalum capacitors
