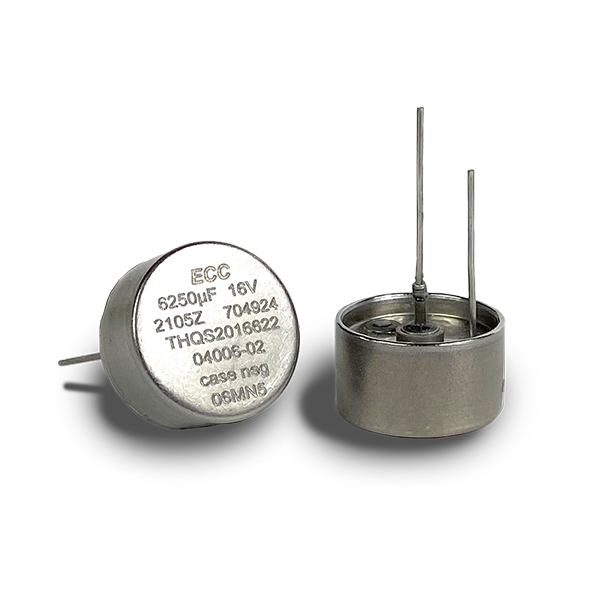

THQS2 Series
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Hybrid Wet Tantalum Capacitor |
| Grade: | DLA 04006 / Hi-Rel / Mission-Critical |
| Dielectric/Construction: | Sintered tantalum anodes and ruthenium oxide coated cathodes in aqueous electrolyte |
| Rated Voltage: | 8V to 50V |
| Capacitance: | 1, 600 μF to 13, 000 μF |
| Sizes: | 0.6 in round diameter base |
| Operating Temp: | -55 °C to +125°C with voltage derating |
Overview
Evans' THQS2 series is a hermetically sealed hybrid wet tantalum capacitor family designed for applications with high impact shock requirements. These capacitors are suited for limited-cycle, limited-time-on-charge use cases such as missile fusing and short-duration power hold-up. The family combines a 0.6 inch round case, 8 V to 50 V ratings, 1,600 μF to 13,000 μF capacitance, and verified impact shock capability of 10,000 g and higher based on customer application test data.
Additional Features
- Impact shock capability of 10,000 g and higher
- Standard tolerance: ±20%, with ±10% available
- Hermetically sealed: Welded tantalum case with glass-to-metal anode terminal seal
- Standard terminals: 60/40 SnPb plated nickel wire
- Life: 2,000 hours at 85°C and rated voltage
- Unlimited shelf life
- REACH compliant
- LF options available
Typical Applications
- Missile fusing
- Short-duration power hold-up
- Applications with high impact shock requirements
- Limited-cycle, limited-time-on-charge designs
