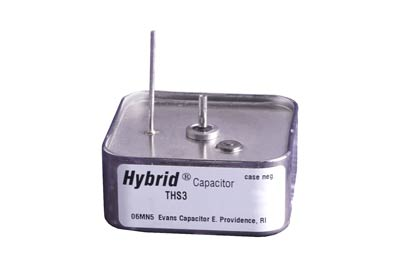

THS3 Series
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Hybrid Wet Tantalum Capacitor |
| Grade: | 09021/ Hi-Rel/ Mission-critical |
| Dielectric/Construction: | Sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte |
| Rated Voltage: | 10V to 125V |
| Capacitance: | 4, 200uF - 200, 000uF |
| Sizes: | 1.4" x 1.4" square base with a standard height of 0.615″ |
| Operating Temp: | -55 °C to +125 °C |
| IMPORTANT NOTE: | The THS3 is for legacy designs only. For new designs, see the TDD and TDE Product Series |
Overview
The THS3 series capacitors utilize sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte with additives. They are hermetically sealed in a welded tantalum case with a glass-to-metal anode terminal seal. THS3 series capacitors come in a 1.4" x 1.4" square package and provide a high- capacitance hybrid wet tantalum solution across a 10 V to 125 V range.
Additional Features
- Standard tolerance of ±20%, with ±10% available
- Stud mount options available
- Hermetically sealed welded tantalum case with glass-to-metal anode terminal seal
- Life: >2,000 hours at 85 °C and rated voltage
- Unlimited shelf life
- REACH Compliant
- LF (Lead-Free) options available
Typical Applications
- High-reliability power electronics
- Defense and aerospace electronics
- Bulk energy storage and filtering
- High-temperature electronic systems
- Designs requiring hermetically sealed hybrid wet tantalum capacitors
