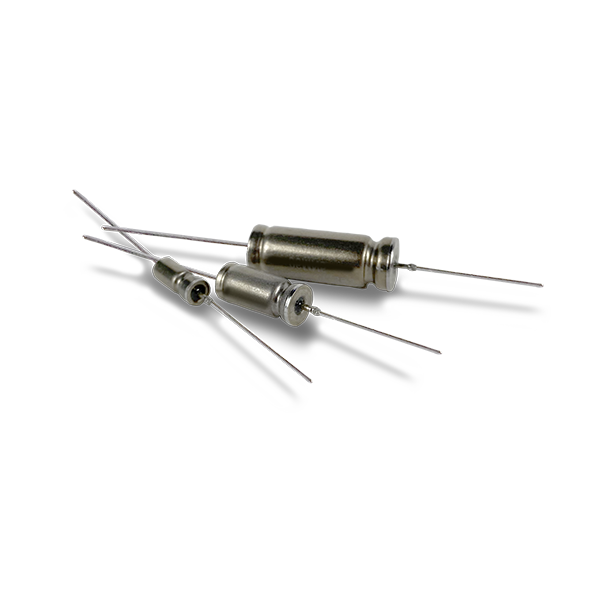

HyCap-HT Series HyCap-HT series

HyCap-HT series

Product Series Specifications

General Parameters
Type: Hybrid Wet Tantalum Capacitor, axial-leaded
Grade: High Temperature Series/ Hi-Rel/ Mission-critical
Dielectric/Construction: Sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte
Rated Voltage: 25V to 62V at 200°C 30V to 75V at 175°C
Capacitance: 68 μF to 1, 800 μF
Sizes: Axial-leaded cylindrical case styles with standard B and D case options, plus B-LF and D-LF variants
Operating Temp: 55 °C to +200°C with voltage derating
HyCap-HT Series

Overview

HyCap-HT series capacitors are axial-leaded hybrid wet tantalum capacitors built with sintered tantalum anodes and ruthenium oxide coated cathodes in aqueous electrolyte, enclosed in a tantalum case with a compressed gasket and hermetically welded glass-to- metal seal. HyCap-HT capacitors are designed for operation in environments up to 200 °C. For extreme shock environments, HyCap-HTX offers a more robust construction in the largest traditional D (T4) case style and is available upon request.

Additional Features

  • Designed for operation up to 200 °C
  • Life: 2,000 hours at 85 °C and rated voltage
  • Standard tolerance: ±20%
  • Hermetically sealed tantalum case with glass to metal seal
  • Standard terminals are 60/40 SnPb plated nickel wire per N32 of MIL-STD-1276
  • Unlimited shelf life REACH Compliant
  • Lead-free options available

Typical Applications

  • Oil & Gas Downhole
  • Wireline
  • Drilling
  • MWD and Completion Services

Parametric Search

Applied Filters: Brand: evans Product Family: tdd
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
Operating Temperature Range
Product Family
Tolerance

Additional Filters

Apply FiltersReset All
Results: 50
CompareProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceOperating Temperature RangeProduct FamilyVoltage Rating - ACToleranceDielectricCase SizeESR (mΩ)TerminationLead Spacing (in/mm)Mounting TypeDimension (in/mm)RoHS
