TDD Series

Product Series Specifications

General Parameters
Type: Hybrid Wet Tantalum Capacitor
Grade: DLA 15010/ Hi-Rel/ Mission-critical
Dielectric/Construction: Sintered tantalum anodes and ruthenium oxide coated cathodes in aqueous electrolyte
Rated Voltage: 10V to 125V
Capacitance: 1, 500 μF to 360, 000 μF
Sizes: 1.4" x 1.4" square base heights from 0.312" to 0.905"
Operating Temp: -55 °C to +85°C, or up to +125°C with voltage derating
TDD Series

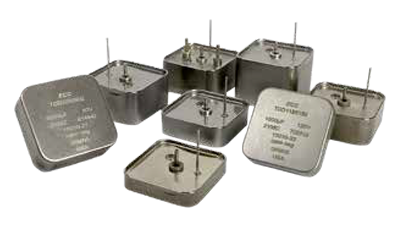

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.

Overview

TDD Series Hybrid Wet Tantalum capacitors feature a compact 1.4" x 1.4" square footprint and are available in six heights, enabling a broad range of capacitance and voltage ratings. With voltage ratings from 10V to 125V, the 10V–50V models deliver the highest energy density of any capacitors in our catalog. TDD Series capacitors are widely used in high-reliability applications, including avionics, space, and defense.

Additional Features

  • Standard tolerance of ±20%, with ±10% available
  • Stud mount options available
  • Hermetically sealed welded tantalum case with glass-to-metal seal
  • Industry-leading power density
  • Life: >2,000 hours at 85°C and rated voltage
  • Unlimited shelf life
  • REACH compliant
  • LF options available

Typical Applications

  • Mission-critical defense and aerospace systems
  • Energy storage and bulk capacitance applications
  • High-temperature electronic systems
  • Designs requiring hermetically sealed
  • hybrid wet tantalum capacitors

Parametric Search

Applied Filters: Brand: evans Product Family: tdd
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
ESR (mΩ)
Product Family
Operating Temperature Range

Additional Filters

Apply FiltersReset All
Results: 50
CompareImageProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceESR (mΩ)Product FamilyOperating Temperature RangeVoltage Rating - ACToleranceDielectricCase SizeTerminationLead Spacing (in/mm)Mounting TypeDimension (in/mm)RoHS
TDD1010603
TDD101060315010-01EvansHybrid Wet Tantalum1060000uF30TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1016403
TDD101640315010-05EvansHybrid Wet Tantalum1640000uF30TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1025243
TDD102524315010-09EvansHybrid Wet Tantalum2524000uF30TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1035163
TDD103516315010-13EvansHybrid Wet Tantalum3516000uF40TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1050113
TDD105011315010-17EvansHybrid Wet Tantalum5011000uF50TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1063472
TDD106347215010-21EvansHybrid Wet Tantalum634700uF50TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1080302
TDD108030215010-25EvansHybrid Wet Tantalum803000uF55TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1100222
TDD110022215010-29EvansHybrid Wet Tantalum1002200uF65TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1110202
TDD111020215010-37EvansHybrid Wet Tantalum1102000uF85TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD1125152
TDD112515215010-33EvansHybrid Wet Tantalum1251500uF65TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD2010124
TDD201012415010-02EvansHybrid Wet Tantalum10120000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2016803
TDD201680315010-06EvansHybrid Wet Tantalum1680000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2025483
TDD202548315010-10EvansHybrid Wet Tantalum2548000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2035323
TDD203532315010-14EvansHybrid Wet Tantalum3532000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2050223
TDD205022315010-18EvansHybrid Wet Tantalum5022000uF25TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2063942
TDD206394215010-22EvansHybrid Wet Tantalum639400uF25TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2080602
TDD208060215010-26EvansHybrid Wet Tantalum806000uF27TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2100442
TDD210044215010-30EvansHybrid Wet Tantalum1004430uF30TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)
-
TDD2110402
TDD211040215010-38EvansHybrid Wet Tantalum1104000uF40TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD2125302
TDD212530215010-34EvansHybrid Wet Tantalum1253000uF45TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD3010184
TDD301018415010-03EvansHybrid Wet Tantalum10180000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3016124
TDD301612415010-07EvansHybrid Wet Tantalum16120000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3025723
TDD302572315010-11EvansHybrid Wet Tantalum2572000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3035483
TDD303548315010-15EvansHybrid Wet Tantalum3548000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3050333
TDD305033315010-19EvansHybrid Wet Tantalum5033000uF17TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3063143
TDD306314315010-23EvansHybrid Wet Tantalum6314000uF17TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3080902
TDD308090215010-27EvansHybrid Wet Tantalum809000uF18TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3100662
TDD310066215010-31EvansHybrid Wet Tantalum1006600uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3110602
TDD311060215010-39EvansHybrid Wet Tantalum1106000uF27TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD3125452
TDD312545215010-35EvansHybrid Wet Tantalum1254500uF25TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD4010244
TDD401024415010-04EvansHybrid Wet Tantalum10240000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4016164
TDD401616415010-08EvansHybrid Wet Tantalum16160000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4025963
TDD402596315010-12EvansHybrid Wet Tantalum2596000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4050443
TDD405044315010-20EvansHybrid Wet Tantalum5044000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4063183
TDD406318315010-24EvansHybrid Wet Tantalum6318000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4080123
TDD408012315010-28EvansHybrid Wet Tantalum8012000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4100882
TDD410088215010-32EvansHybrid Wet Tantalum1008800uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4110802
TDD411080215010-40EvansHybrid Wet Tantalum1108000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD4125602
TDD412560215010-36EvansHybrid Wet Tantalum1256000uF20TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD5010304
TDD501030415010-41EvansHybrid Wet Tantalum10300000uF10TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5016204
TDD501620415010-42EvansHybrid Wet Tantalum16200000uF10TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5025124
TDD502512415010-43EvansHybrid Wet Tantalum25120000uF10TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5035803
TDD503580315010-44EvansHybrid Wet Tantalum3580000uF10TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5050553
TDD505055315010-45EvansHybrid Wet Tantalum5055000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5063223
TDD506322315010-46EvansHybrid Wet Tantalum6322700uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5080153
TDD508015315010-47EvansHybrid Wet Tantalum8015000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5100113
TDD510011315010-48EvansHybrid Wet Tantalum10011000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5110103
TDD511010315010-49EvansHybrid Wet Tantalum11010000uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD5125752
TDD512575215010-50EvansHybrid Wet Tantalum1257500uF15TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD4035643
TDD403564315010-16EvansHybrid Wet Tantalum3564000uF12TDD-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
