HyCap Series

Product Series Specifications

General Parameters
Type: Hybrid Wet Tantalum Capacitor, axial-leaded
Grade: 10004, 93026 / Hi-Rel/ Mission-critical
Dielectric/Construction: Sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte
Rated Voltage: 10V to 150V
Capacitance: 47uF - 2, 700uF
Sizes: Axial-leaded cylindrical case styles with standard B and D case options, plus B-LF and D-LF
Operating Temp: 55 °C to +125 °C with voltage derating
HyCap Series

Overview

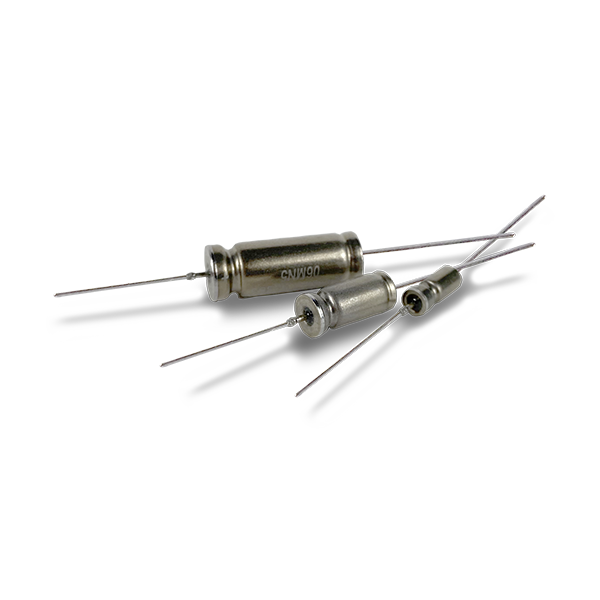

HyCap series capacitors are axial-leaded hybrid wet tantalum capacitors built with sintered tantalum anodes and ruthenium oxide coated cathodes in an aqueous electrolyte, enclosed in a tantalum case with a compressed gasket and hermetically welded glass-to- metal seal. The standard HyCap series is designed to operate reliably in high shock and vibration environments. For operation up to 200 °C, see HyCap-HT. For extreme shock environments, HyCap-HTX offers a more robust construction and is available upon request.

Additional Features

  • HyCap is the standard high-shock/high-vibration series for operation up to 125 °C with derating
  • Life: 2,000 hours at 85 °C and rated voltage
  • Standard tolerance ±20%, with ±10% available
  • Hermetically sealed tantalum case with glass-to-metal seal
  • Standard 60/40 SnPb plated nickel wire terminations
  • Unlimited shelf life
  • REACH Compliant
  • Lead-free options available

Typical Applications

  • High shock and vibration environments
  • Aerospace and defense systems

Parametric Search

Applied Filters: Brand: evans Product Family: tdd
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
Operating Temperature Range
Product Family
Tolerance

Additional Filters

Apply FiltersReset All
Results: 50
CompareProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceOperating Temperature RangeProduct FamilyVoltage Rating - ACToleranceDielectricCase SizeESR (mΩ)TerminationLead Spacing (in/mm)Mounting TypeDimension (in/mm)RoHS
