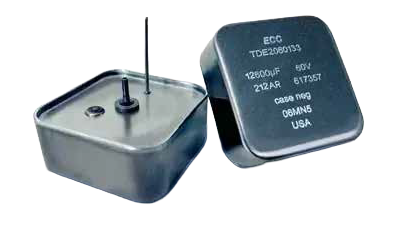

TDE Series
Product Series Specifications
| General Parameters | |
|---|---|
| Type: | Hybrid Wet Tantalum Capacitor |
| Grade: | Hi-Rel/ Mission-critical |
| Dielectric/Construction: | Sintered tantalum anodes and ruthenium oxide coated cathodes in aqueous electrolyte |
| Rated Voltage: | 60V to 110V |
| Capacitance: | 2, 200 μF to 25, 000 μF |
| Sizes: | 1.4" x 1.4" square base with heights from 0.312" to 0.755" |
| Operating Temp: | -55 °C to +85 °C, or up to +125 °C with voltage derating |
Overview
The TDE series capacitors utilize sintered tantalum anodes and ruthenium oxide coated cathodes operating in aqueous electrolyte. They are hermetically sealed in a welded tantalum case with a glass- to-metal seal. The TDE series comes in a 1.4" x 1.4" square case and offers the highest power density of any tantalum capacitor technology.
Additional Features
- Standard tolerance of ±20%, with ±10% available
- Stud mount options available
- Hermetically sealed welded tantalum case with glass-to-metal seal
- Highest power density of any tantalum capacitor technology
- Life: $>2,000 hours at 85°C and rated voltage
- Unlimited shelf life
- REACH compliant
- LF options available
Typical Applications
- Mission-critical defense and aerospace systems
- Energy storage and bulk capacitance applications
- High-temperature electronic systems
- Designs requiring hermetically sealed hybrid wet tantalum capacitors
