THQ Series

Product Series Specifications

General Parameters
Type: Hybrid Wet Tantalum Capacitor
Grade: DLA 04001, 04003, 04004, 09022 / Hi-Rel/ Mission-critical
Dielectric/Construction: Sintered tantalum anodes and ruthenium oxide coated cathodes in aqueous electrolyte
Rated Voltage: 10V to 125V
Capacitance: 1, 100 μF to 200, 000 μF
Sizes: 1.4" round base with five standard heights
Operating Temp: -55 °C to +85 °C, or up to +125 °C with voltage derating
THQ Series

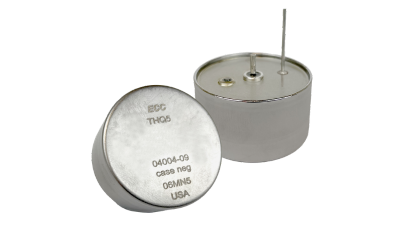

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.

Overview

THQ Series Hybrid Wet Tantalum capacitors feature a 1.4" diameter round footprint and are available in five different heights. Voltage ratings range from 10V to 125V. While lower in energy density and higher in ESR than their TDD and TDE counterparts, THQ Series capacitors provide a lower-cost option. THQ Series capacitors have a long heritage in military, aerospace, and other high-reliability applications.

Additional Features

  • Standard tolerance of ±20%, with ±10% available
  • Stud mount options available
  • Hermetically sealed welded tantalum case with glass-to-metal anode terminal seal
  • Life: >2,000 hours at 85 °C and rated voltage
  • Unlimited shelf life
  • REACH Compliant
  • LF options available

Typical Applications

  • High-reliability power electronics
  • Defense and aerospace electronics
  • Bulk energy storage and filtering
  • High-temperature electronic systems
  • Designs requiring hermetically sealed hybrid wet tantalum capacitors

Parametric Search

Applied Filters: Brand: evans Product Family: thq
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
Product Family
Series
Operating Temperature Range

Additional Filters

Apply FiltersReset All
Results: 50
CompareImageProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceESR (mΩ)Product FamilySeriesOperating Temperature RangeVoltage Rating - ACToleranceDielectricCase SizeTerminationLead Spacing (in/mm)Mounting Type# Leads (per side)Dimension (in/mm)RoHS
THQ1010503
THQ101050304001-01EvansHybrid Wet Tantalum1050000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1016303
THQ101630304001-02EvansHybrid Wet Tantalum1630000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1025183
THQ102518304001-03EvansHybrid Wet Tantalum2518000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1035123
THQ103512304001-04EvansHybrid Wet Tantalum3512000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1050802
THQ105080204001-05EvansHybrid Wet Tantalum508000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1063402
THQ1063402
-
EvansHybrid Wet Tantalum634000uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1080282
THQ108028204001-07EvansHybrid Wet Tantalum802800uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1100192
THQ110019204001-08EvansHybrid Wet Tantalum1001900uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1110152
THQ111015204001-09EvansHybrid Wet Tantalum1101500uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ1125112
THQ112511204003-09EvansHybrid Wet Tantalum1251100uF
-
THQTHQ1-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.312" (7.92 mm)
-
THQ2010104
THQ2010104
-
EvansHybrid Wet Tantalum10100000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2016603
THQ2016603
-
EvansHybrid Wet Tantalum1660000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2025363
THQ2025363
-
EvansHybrid Wet Tantalum2536000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2035243
THQ2035243
-
EvansHybrid Wet Tantalum3524000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2050163
THQ2050163
-
EvansHybrid Wet Tantalum5016000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2063802
THQ2063802
-
EvansHybrid Wet Tantalum638000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2080562
THQ2080562
-
EvansHybrid Wet Tantalum805600uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2100382
THQ2100382
-
EvansHybrid Wet Tantalum1003800uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2110302
THQ2110302
-
EvansHybrid Wet Tantalum1103000uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ2125222
THQ2125222
-
EvansHybrid Wet Tantalum1252200uF
-
THQTHQ2-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.46" (11.68 mm)
-
THQ3010154
THQ301015404003-01EvansHybrid Wet Tantalum10150000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3016903
THQ301690304003-02EvansHybrid Wet Tantalum1690000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3025543
THQ302554304003-03EvansHybrid Wet Tantalum2554000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3035363
THQ303536304003-04EvansHybrid Wet Tantalum3536000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3050243
THQ305024304003-05EvansHybrid Wet Tantalum5024000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3063123
THQ306312304003-06EvansHybrid Wet Tantalum6312000uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3080822
THQ308082204003-07EvansHybrid Wet Tantalum808200uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3100572
THQ310057204003-08EvansHybrid Wet Tantalum1005700uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3110452
THQ311045204003-09EvansHybrid Wet Tantalum1104500uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ3125332
THQ312533204003-10EvansHybrid Wet Tantalum1253300uF
-
THQTHQ3-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.608" (15.44 mm)
-
THQ4010204
THQ401020409022-01EvansHybrid Wet Tantalum10200000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4016124
THQ401612409022-02EvansHybrid Wet Tantalum16120000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4025703
THQ402570309022-03EvansHybrid Wet Tantalum2570000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4035503
THQ403550309022-04EvansHybrid Wet Tantalum3550000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4050323
THQ405032309022-05EvansHybrid Wet Tantalum5032000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4063163
THQ406316309022-06EvansHybrid Wet Tantalum6316000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4080113
THQ408011309022-07EvansHybrid Wet Tantalum8011000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4100752
THQ410075209022-08EvansHybrid Wet Tantalum1007500uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4110602
THQ4110602
-
EvansHybrid Wet Tantalum1106000uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ4125452
THQ412545209022-09EvansHybrid Wet Tantalum1254500uF
-
THQTHQ4-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.725" (18.41 mm)
-
THQ5010204
THQ501020404004-01EvansHybrid Wet Tantalum10200000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5016124
THQ501612404004-02EvansHybrid Wet Tantalum16120000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5025703
THQ502570304004-03EvansHybrid Wet Tantalum2570000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5035503
THQ503550304004-04EvansHybrid Wet Tantalum3550000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5050303
THQ5050303
-
EvansHybrid Wet Tantalum5030000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5063163
THQ506316304004-06EvansHybrid Wet Tantalum6316000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5080113
THQ508011304004-07EvansHybrid Wet Tantalum8011000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5100752
THQ510075204004-08EvansHybrid Wet Tantalum1007500uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5110602
THQ5110602
-
EvansHybrid Wet Tantalum1106000uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
THQ5125452
THQ512545204004-09EvansHybrid Wet Tantalum1254500uF
-
THQTHQ5-55°C to +125°C
-
±20% Std (±10% Optional)Ta₂O₅
-
Sn63/Pb37
-
Thru-hole
-
Diam 1.40" (35.56mm) H 0.76" (19.30 mm)
-
