Discoidal Capacitors

Product Series Specifications

General Parameters
Type: Discoidal Feed-Through Capacitor
Grade: Hi-Rel
Dielectric/Construction: NPO, X7R
Rated Voltage: 25V to 3000V
Capacitance: 10pF to 7.2μF
Sizes: 0502 – 6429
Operating Temp: Dielectric-dependent
Discoidal Capacitors

Overview

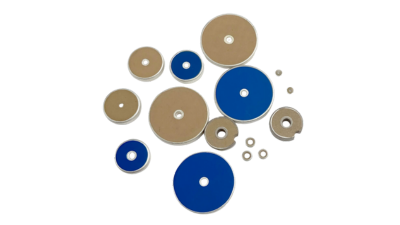

UTC discoidal feed-through capacitors use multilayer construction to achieve very low impedance to ground for optimum EMI suppression. Their alternate-layered construction provides very low series resistance and series inductance, enabling low impedance at high frequencies. These capacitors are intended for chassis or bulkhead mounting, either individually or in a cylindrical can, to provide excellent isolation between the input signal and the output of the capacitor or filter.

Additional Features

  • Designed to meet or exceed the requirements of MIL-PRF-15733, MIL-PRF-28861, and MIL-PRF-31033
  • Multilayer construction with through-hole mounting
  • Low impedance to ground for optimum EMI suppression
  • High-frequency performance
  • Ultra-low ESR
  • Excellent isolation of input signal from output when chassis or bulkhead mounted
  • High capacitance density
  • RoHS compliant

Typical Applications

  • EMI suppression
  • Power supplies
  • Lighting systems
  • High-voltage circuits
  • Chassis-mounted and bulkhead-mounted filtering applications
  • Feed-through filtering where input-to-output isolation is critical

Parametric Search

Applied Filters: Brand: evans Product Family: tdd
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
Operating Temperature Range
Product Family
Tolerance

Additional Filters

Apply FiltersReset All
Results: 50
CompareProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceOperating Temperature RangeProduct FamilyVoltage Rating - ACToleranceDielectricCase SizeESR (mΩ)TerminationLead Spacing (in/mm)Mounting TypeDimension (in/mm)RoHS
TDD101060315010-01EvansHybrid Wet Tantalum1060000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD101640315010-05EvansHybrid Wet Tantalum1640000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD102524315010-09EvansHybrid Wet Tantalum2524000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD103516315010-13EvansHybrid Wet Tantalum3516000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
40Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD105011315010-17EvansHybrid Wet Tantalum5011000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
50Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD106347215010-21EvansHybrid Wet Tantalum634700uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
50Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD108030215010-25EvansHybrid Wet Tantalum803000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
55Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD110022215010-29EvansHybrid Wet Tantalum1002200uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
65Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD111020215010-37EvansHybrid Wet Tantalum1102000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
85Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD112515215010-33EvansHybrid Wet Tantalum1251500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
65Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD201012415010-02EvansHybrid Wet Tantalum10120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD201680315010-06EvansHybrid Wet Tantalum1680000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD202548315010-10EvansHybrid Wet Tantalum2548000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD203532315010-14EvansHybrid Wet Tantalum3532000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD205022315010-18EvansHybrid Wet Tantalum5022000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD206394215010-22EvansHybrid Wet Tantalum639400uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD208060215010-26EvansHybrid Wet Tantalum806000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
27Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD210044215010-30EvansHybrid Wet Tantalum1004430uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)
-
TDD211040215010-38EvansHybrid Wet Tantalum1104000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
40Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD212530215010-34EvansHybrid Wet Tantalum1253000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
45Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD301018415010-03EvansHybrid Wet Tantalum10180000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD301612415010-07EvansHybrid Wet Tantalum16120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD302572315010-11EvansHybrid Wet Tantalum2572000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD303548315010-15EvansHybrid Wet Tantalum3548000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD305033315010-19EvansHybrid Wet Tantalum5033000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
17Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD306314315010-23EvansHybrid Wet Tantalum6314000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
17Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD308090215010-27EvansHybrid Wet Tantalum809000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
18Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD310066215010-31EvansHybrid Wet Tantalum1006600uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD311060215010-39EvansHybrid Wet Tantalum1106000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
27Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD312545215010-35EvansHybrid Wet Tantalum1254500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD401024415010-04EvansHybrid Wet Tantalum10240000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD401616415010-08EvansHybrid Wet Tantalum16160000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD402596315010-12EvansHybrid Wet Tantalum2596000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD405044315010-20EvansHybrid Wet Tantalum5044000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD406318315010-24EvansHybrid Wet Tantalum6318000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD408012315010-28EvansHybrid Wet Tantalum8012000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD410088215010-32EvansHybrid Wet Tantalum1008800uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD411080215010-40EvansHybrid Wet Tantalum1108000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD412560215010-36EvansHybrid Wet Tantalum1256000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD501030415010-41EvansHybrid Wet Tantalum10300000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD501620415010-42EvansHybrid Wet Tantalum16200000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD502512415010-43EvansHybrid Wet Tantalum25120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD503580315010-44EvansHybrid Wet Tantalum3580000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD505055315010-45EvansHybrid Wet Tantalum5055000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD506322315010-46EvansHybrid Wet Tantalum6322700uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD508015315010-47EvansHybrid Wet Tantalum8015000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD510011315010-48EvansHybrid Wet Tantalum10011000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD511010315010-49EvansHybrid Wet Tantalum11010000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD512575215010-50EvansHybrid Wet Tantalum1257500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD403564315010-16EvansHybrid Wet Tantalum3564000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
