Planar Array Capacitors Planar Capacitor Arrays

Planar Capacitor Arrays

Product Series Specifications

General Parameters
Type:	Switch mode power supply filter capacitor assembly
Grade:	Hi-Rel
Dielectric/Construction:	NPO, X7R
Rated Voltage:	25V to 2000V
Capacitance:	1100pF to μF
Sizes:	Circular, Sub D, ARINC, and custom configurations
Operating Temp:	-55 °C to +125 °C

Datasheet

Request a Quote

Talk to an Engineer

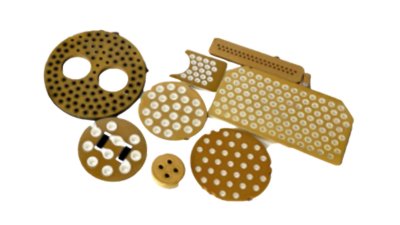

UTC Planar Capacitor Arrays are designed for reliable continuous operation at rated voltage and operating temperatures specified by the MIL standard. They help reduce electromagnetic interference by acting as low-pass filters that restrict high-frequency currents at the connector. UTC can produce standard filters in rectangular, circular, or shaped arrangements and can build to a range of MIL-based connector and array specifications.

Designed to meet or exceed the requirements of MIL-PRF-15733 and MIL-PRF-28881
Compact size for efficient use of PCB space
Allows integration with other passive components into a single package or layout
Consistent electrical characteristics across components within the array
Mitigates noise
Reduces EMI by acting as a low-pass filter restricting high-frequency currents at the connector
Available in custom and standard sizes including circular, Sub D, and ARINC
RoHS compliant

EMI suppression at cable connectors
Interface cable filtering
Low-pass filtering of high-frequency signals
Connectorized electronic equipment
Mission-critical systems requiring feed-through array filtering

Product	DLA PN	Brand	Capacitor Type	Voltage DC	Capacitance	Operating Temperature Range	Product Family	Voltage Rating - AC	Tolerance	Dielectric	Case Size	ESR (mΩ)	Termination	Lead Spacing (in/mm)	Mounting Type	Dimension (in/mm)	RoHS
TDD1010603	15010-01	Evans	Hybrid Wet Tantalum	10	60000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1016403	15010-05	Evans	Hybrid Wet Tantalum	16	40000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1025243	15010-09	Evans	Hybrid Wet Tantalum	25	24000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1035163	15010-13	Evans	Hybrid Wet Tantalum	35	16000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1050113	15010-17	Evans	Hybrid Wet Tantalum	50	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1063472	15010-21	Evans	Hybrid Wet Tantalum	63	4700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1080302	15010-25	Evans	Hybrid Wet Tantalum	80	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	55	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1100222	15010-29	Evans	Hybrid Wet Tantalum	100	2200uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1110202	15010-37	Evans	Hybrid Wet Tantalum	110	2000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	85	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1125152	15010-33	Evans	Hybrid Wet Tantalum	125	1500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD2010124	15010-02	Evans	Hybrid Wet Tantalum	10	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2016803	15010-06	Evans	Hybrid Wet Tantalum	16	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2025483	15010-10	Evans	Hybrid Wet Tantalum	25	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2035323	15010-14	Evans	Hybrid Wet Tantalum	35	32000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2050223	15010-18	Evans	Hybrid Wet Tantalum	50	22000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2063942	15010-22	Evans	Hybrid Wet Tantalum	63	9400uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2080602	15010-26	Evans	Hybrid Wet Tantalum	80	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2100442	15010-30	Evans	Hybrid Wet Tantalum	100	4430uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)	-
TDD2110402	15010-38	Evans	Hybrid Wet Tantalum	110	4000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2125302	15010-34	Evans	Hybrid Wet Tantalum	125	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	45	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD3010184	15010-03	Evans	Hybrid Wet Tantalum	10	180000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3016124	15010-07	Evans	Hybrid Wet Tantalum	16	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3025723	15010-11	Evans	Hybrid Wet Tantalum	25	72000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3035483	15010-15	Evans	Hybrid Wet Tantalum	35	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3050333	15010-19	Evans	Hybrid Wet Tantalum	50	33000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3063143	15010-23	Evans	Hybrid Wet Tantalum	63	14000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3080902	15010-27	Evans	Hybrid Wet Tantalum	80	9000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	18	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3100662	15010-31	Evans	Hybrid Wet Tantalum	100	6600uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3110602	15010-39	Evans	Hybrid Wet Tantalum	110	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3125452	15010-35	Evans	Hybrid Wet Tantalum	125	4500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD4010244	15010-04	Evans	Hybrid Wet Tantalum	10	240000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4016164	15010-08	Evans	Hybrid Wet Tantalum	16	160000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4025963	15010-12	Evans	Hybrid Wet Tantalum	25	96000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4050443	15010-20	Evans	Hybrid Wet Tantalum	50	44000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4063183	15010-24	Evans	Hybrid Wet Tantalum	63	18000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4080123	15010-28	Evans	Hybrid Wet Tantalum	80	12000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4100882	15010-32	Evans	Hybrid Wet Tantalum	100	8800uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4110802	15010-40	Evans	Hybrid Wet Tantalum	110	8000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4125602	15010-36	Evans	Hybrid Wet Tantalum	125	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD5010304	15010-41	Evans	Hybrid Wet Tantalum	10	300000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5016204	15010-42	Evans	Hybrid Wet Tantalum	16	200000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5025124	15010-43	Evans	Hybrid Wet Tantalum	25	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5035803	15010-44	Evans	Hybrid Wet Tantalum	35	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5050553	15010-45	Evans	Hybrid Wet Tantalum	50	55000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5063223	15010-46	Evans	Hybrid Wet Tantalum	63	22700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5080153	15010-47	Evans	Hybrid Wet Tantalum	80	15000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5100113	15010-48	Evans	Hybrid Wet Tantalum	100	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5110103	15010-49	Evans	Hybrid Wet Tantalum	110	10000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5125752	15010-50	Evans	Hybrid Wet Tantalum	125	7500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD4035643	15010-16	Evans	Hybrid Wet Tantalum	35	64000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
