General Parameters

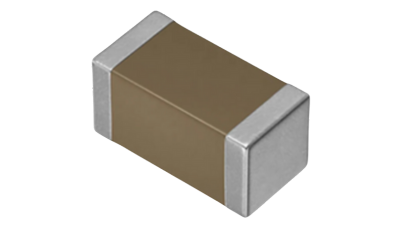

Type:	Multilayer Ceramic Chip Capacitor
Grade:	Commercial / Industrial
Dielectric/Construction:	C0G, X7R, X7S, X6S, X5R
Rated Voltage:	6.3 V to 50 V
Capacitance:	0.1 pF to 220 μF, depending on dielectric and size
Sizes:	01005 to 2225
Operating Temp:	-55 °C to +125 °C depending on dielectric

Parametric Search

Rows per page:

Product	DLA PN	Brand	Capacitor Type	Voltage DC	Capacitance	Operating Temperature Range	Product Family	Voltage Rating - AC	Tolerance	Dielectric	Case Size	ESR (mΩ)	Termination	Lead Spacing (in/mm)	Mounting Type	Dimension (in/mm)	RoHS
CA1005X5R102JWT	-	UTC	Ceramic	6.3	1000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R102KWT	-	UTC	Ceramic	6.3	1000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R102MWT	-	UTC	Ceramic	6.3	1000 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R103JWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R103KWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R103MWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R104JWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R104KWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R104MWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R223JWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R223KWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R223MWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R333JWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R333KWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R333MWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R473JWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R473KWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1005X5R473MWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1005	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.40mm) x W 0.01" (0.20mm) x H 0.01" (0.20mm)	Yes
CA1206X5R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R107JWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R107KWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R107MWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R227JWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R227KWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R227MWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R475JWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R475KWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R475MWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R476JWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R476KWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R476MWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R685JWT	-	UTC	Ceramic	6.3	6.8 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R685KWT	-	UTC	Ceramic	6.3	6.8 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X5R685MWT	-	UTC	Ceramic	6.3	6.8 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R155JWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R155KWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R155MWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R225JWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R225KWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R225MWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.05" (1.15mm)	Yes
CA1206X7R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R475JWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R475KWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1206X7R475MWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1206	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.06" (1.60mm) x H 0.06" (1.60mm)	Yes
CA1210X5R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X5R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X5R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X5R107JWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R107KWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R107MWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R227JWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R227KWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R227MWT	-	UTC	Ceramic	6.3	220 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R476JWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R476KWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X5R476MWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X7R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X7R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X7R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.08" (2.00mm)	Yes
CA1210X7R476JWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X7R476KWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA1210X7R476MWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	1210	-	Cu/Ni/Sn	-	SMD	L 0.13" (3.20mm) x W 0.10" (2.50mm) x H 0.10" (2.50mm)	Yes
CA201X5R103JWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R103KWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R103MWT	-	UTC	Ceramic	6.3	10000 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R104JWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R104KWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R104MWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R105JWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R105KWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R105MWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R153JWT	-	UTC	Ceramic	6.3	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R153KWT	-	UTC	Ceramic	6.3	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R153MWT	-	UTC	Ceramic	6.3	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R223JWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R223KWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R223MWT	-	UTC	Ceramic	6.3	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R225JWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R225KWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R225MWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R333JWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R333KWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R333MWT	-	UTC	Ceramic	6.3	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R334JWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R334KWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R334MWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R473JWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R473KWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R473MWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R474JWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R474KWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R474MWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R563JWT	-	UTC	Ceramic	6.3	0.056 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R563KWT	-	UTC	Ceramic	6.3	0.056 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R563MWT	-	UTC	Ceramic	6.3	0.056 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R683JWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R683KWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA201X5R683MWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CA402X5R104JWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R104KWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R104MWT	-	UTC	Ceramic	6.3	0.1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R105JWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R105KWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R105MWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R154JWT	-	UTC	Ceramic	6.3	0.15 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R154KWT	-	UTC	Ceramic	6.3	0.15 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R154MWT	-	UTC	Ceramic	6.3	0.15 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R224JWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R224KWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R224MWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R225JWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R225KWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R225MWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R334JWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R334KWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R334MWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R473JWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R473KWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R473MWT	-	UTC	Ceramic	6.3	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R474JWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R474KWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R474MWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R475JWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R475KWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R475MWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R683JWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R683KWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R683MWT	-	UTC	Ceramic	6.3	0.068 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R684JWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R684KWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA402X5R684MWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0402	-	Cu/Ni/Sn	-	SMD	L 0.04" (1.00mm) x W 0.02" (0.50mm) x H 0.02" (0.50mm)	Yes
CA603X5R105JWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R105KWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R105MWT	-	UTC	Ceramic	6.3	1 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R155JWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R155KWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R155MWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R224JWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R224KWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R224MWT	-	UTC	Ceramic	6.3	0.22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R225JWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R225KWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R225MWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R334JWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R334KWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R334MWT	-	UTC	Ceramic	6.3	0.33 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R335JWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R335KWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R335MWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R474JWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R474KWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R474MWT	-	UTC	Ceramic	6.3	0.47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R475JWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R475KWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R475MWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R476JWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R476KWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R476MWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R684JWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R684KWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA603X5R684MWT	-	UTC	Ceramic	6.3	0.68 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0603	-	Cu/Ni/Sn	-	SMD	L 0.06" (1.60mm) x W 0.03" (0.80mm) x H 0.03" (0.80mm)	Yes
CA805X5R106JWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R106KWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R106MWT	-	UTC	Ceramic	6.3	10 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R107JWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R107KWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R107MWT	-	UTC	Ceramic	6.3	100 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R155JWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R155KWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R155MWT	-	UTC	Ceramic	6.3	1.5 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R225JWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R225KWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R225MWT	-	UTC	Ceramic	6.3	2.2 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R226JWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R226KWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R226MWT	-	UTC	Ceramic	6.3	22 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R335JWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R335KWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R335MWT	-	UTC	Ceramic	6.3	3.3 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R475JWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R475KWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R475MWT	-	UTC	Ceramic	6.3	4.7 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R476JWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±5%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R476KWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±10%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CA805X5R476MWT	-	UTC	Ceramic	6.3	47 uF	-55°C to +125°C	C - Low Voltage	-	±20%	X5R	0805	-	Cu/Ni/Sn	-	SMD	L 0.08" (2.00mm) x W 0.05" (1.25mm) x H 0.05" (1.25mm)	Yes
CC0201C0G0R1FWT	-	UTC	Ceramic	10	0.1 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R1GWT	-	UTC	Ceramic	10	0.1 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R1JWT	-	UTC	Ceramic	10	0.1 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R1KWT	-	UTC	Ceramic	10	0.1 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R2FWT	-	UTC	Ceramic	10	0.2 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R2GWT	-	UTC	Ceramic	10	0.2 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R2JWT	-	UTC	Ceramic	10	0.2 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R2KWT	-	UTC	Ceramic	10	0.2 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R3FWT	-	UTC	Ceramic	10	0.3 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R3GWT	-	UTC	Ceramic	10	0.3 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R3JWT	-	UTC	Ceramic	10	0.3 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R3KWT	-	UTC	Ceramic	10	0.3 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R4FWT	-	UTC	Ceramic	10	0.4 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R4GWT	-	UTC	Ceramic	10	0.4 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R4JWT	-	UTC	Ceramic	10	0.4 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R4KWT	-	UTC	Ceramic	10	0.4 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R5FWT	-	UTC	Ceramic	10	0.5 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R5GWT	-	UTC	Ceramic	10	0.5 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R5JWT	-	UTC	Ceramic	10	0.5 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R5KWT	-	UTC	Ceramic	10	0.5 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R6FWT	-	UTC	Ceramic	10	0.6 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R6GWT	-	UTC	Ceramic	10	0.6 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R6JWT	-	UTC	Ceramic	10	0.6 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R6KWT	-	UTC	Ceramic	10	0.6 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R7FWT	-	UTC	Ceramic	10	0.7 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R7GWT	-	UTC	Ceramic	10	0.7 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R7JWT	-	UTC	Ceramic	10	0.7 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R7KWT	-	UTC	Ceramic	10	0.7 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R8FWT	-	UTC	Ceramic	10	0.8 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R8GWT	-	UTC	Ceramic	10	0.8 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R8JWT	-	UTC	Ceramic	10	0.8 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R8KWT	-	UTC	Ceramic	10	0.8 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R9FWT	-	UTC	Ceramic	10	0.9 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R9GWT	-	UTC	Ceramic	10	0.9 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R9JWT	-	UTC	Ceramic	10	0.9 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G0R9KWT	-	UTC	Ceramic	10	0.9 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G100FWT	-	UTC	Ceramic	10	10 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G100GWT	-	UTC	Ceramic	10	10 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G100JWT	-	UTC	Ceramic	10	10 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G100KWT	-	UTC	Ceramic	10	10 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G101FWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G101GWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G101JWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G101KWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G102FWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G102GWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G102JWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G102KWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G103FWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G103GWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G103JWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G103KWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G120FWT	-	UTC	Ceramic	10	12 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G120GWT	-	UTC	Ceramic	10	12 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G120JWT	-	UTC	Ceramic	10	12 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G120KWT	-	UTC	Ceramic	10	12 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G121FWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G121GWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G121JWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G121KWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G122FWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G122GWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G122JWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G122KWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G123FWT	-	UTC	Ceramic	10	0.012 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G123GWT	-	UTC	Ceramic	10	0.012 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G123JWT	-	UTC	Ceramic	10	0.012 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G123KWT	-	UTC	Ceramic	10	0.012 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G150FWT	-	UTC	Ceramic	10	15 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G150GWT	-	UTC	Ceramic	10	15 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G150JWT	-	UTC	Ceramic	10	15 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G150KWT	-	UTC	Ceramic	10	15 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G151FWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G151GWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G151JWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G151KWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G152FWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G152GWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G152JWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G152KWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G153FWT	-	UTC	Ceramic	10	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G153GWT	-	UTC	Ceramic	10	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G153JWT	-	UTC	Ceramic	10	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G153KWT	-	UTC	Ceramic	10	0.015 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.05" (1.25mm)	Yes
CC0201C0G180FWT	-	UTC	Ceramic	10	18 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G180GWT	-	UTC	Ceramic	10	18 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G180JWT	-	UTC	Ceramic	10	18 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G180KWT	-	UTC	Ceramic	10	18 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G181FWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G181GWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G181JWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G181KWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G182FWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G182GWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G182JWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G182KWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G183FWT	-	UTC	Ceramic	10	0.018 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G183GWT	-	UTC	Ceramic	10	0.018 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G183JWT	-	UTC	Ceramic	10	0.018 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G183KWT	-	UTC	Ceramic	10	0.018 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G1R0FWT	-	UTC	Ceramic	10	1 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R0GWT	-	UTC	Ceramic	10	1 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R0JWT	-	UTC	Ceramic	10	1 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R0KWT	-	UTC	Ceramic	10	1 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R2FWT	-	UTC	Ceramic	10	1.2 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R2GWT	-	UTC	Ceramic	10	1.2 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R2JWT	-	UTC	Ceramic	10	1.2 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R2KWT	-	UTC	Ceramic	10	1.2 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R5FWT	-	UTC	Ceramic	10	1.5 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R5GWT	-	UTC	Ceramic	10	1.5 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R5JWT	-	UTC	Ceramic	10	1.5 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R5KWT	-	UTC	Ceramic	10	1.5 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R8FWT	-	UTC	Ceramic	10	1.8 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R8GWT	-	UTC	Ceramic	10	1.8 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R8JWT	-	UTC	Ceramic	10	1.8 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G1R8KWT	-	UTC	Ceramic	10	1.8 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G220FWT	-	UTC	Ceramic	10	22 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G220GWT	-	UTC	Ceramic	10	22 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G220JWT	-	UTC	Ceramic	10	22 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G220KWT	-	UTC	Ceramic	10	22 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G221FWT	-	UTC	Ceramic	10	220 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G221GWT	-	UTC	Ceramic	10	220 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G221JWT	-	UTC	Ceramic	10	220 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G221KWT	-	UTC	Ceramic	10	220 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G222FWT	-	UTC	Ceramic	10	2200 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G222GWT	-	UTC	Ceramic	10	2200 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G222JWT	-	UTC	Ceramic	10	2200 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G222KWT	-	UTC	Ceramic	10	2200 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G223FWT	-	UTC	Ceramic	10	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G223GWT	-	UTC	Ceramic	10	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G223JWT	-	UTC	Ceramic	10	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G223KWT	-	UTC	Ceramic	10	0.022 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G270FWT	-	UTC	Ceramic	10	27 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G270GWT	-	UTC	Ceramic	10	27 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G270JWT	-	UTC	Ceramic	10	27 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G270KWT	-	UTC	Ceramic	10	27 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G271FWT	-	UTC	Ceramic	10	270 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G271GWT	-	UTC	Ceramic	10	270 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G271JWT	-	UTC	Ceramic	10	270 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G271KWT	-	UTC	Ceramic	10	270 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G272FWT	-	UTC	Ceramic	10	2700 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G272GWT	-	UTC	Ceramic	10	2700 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G272JWT	-	UTC	Ceramic	10	2700 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G272KWT	-	UTC	Ceramic	10	2700 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G273FWT	-	UTC	Ceramic	10	0.027 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G273GWT	-	UTC	Ceramic	10	0.027 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G273JWT	-	UTC	Ceramic	10	0.027 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G273KWT	-	UTC	Ceramic	10	0.027 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G2R2FWT	-	UTC	Ceramic	10	2.2 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R2GWT	-	UTC	Ceramic	10	2.2 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R2JWT	-	UTC	Ceramic	10	2.2 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R2KWT	-	UTC	Ceramic	10	2.2 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R7FWT	-	UTC	Ceramic	10	2.7 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R7GWT	-	UTC	Ceramic	10	2.7 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R7JWT	-	UTC	Ceramic	10	2.7 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G2R7KWT	-	UTC	Ceramic	10	2.7 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G330FWT	-	UTC	Ceramic	10	33 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G330GWT	-	UTC	Ceramic	10	33 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G330JWT	-	UTC	Ceramic	10	33 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G330KWT	-	UTC	Ceramic	10	33 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G331FWT	-	UTC	Ceramic	10	330 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G331GWT	-	UTC	Ceramic	10	330 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G331JWT	-	UTC	Ceramic	10	330 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G331KWT	-	UTC	Ceramic	10	330 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G332FWT	-	UTC	Ceramic	10	3300 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G332GWT	-	UTC	Ceramic	10	3300 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G332JWT	-	UTC	Ceramic	10	3300 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G332KWT	-	UTC	Ceramic	10	3300 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G333FWT	-	UTC	Ceramic	10	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G333GWT	-	UTC	Ceramic	10	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G333JWT	-	UTC	Ceramic	10	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G333KWT	-	UTC	Ceramic	10	0.033 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G390FWT	-	UTC	Ceramic	10	39 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G390GWT	-	UTC	Ceramic	10	39 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G390JWT	-	UTC	Ceramic	10	39 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G390KWT	-	UTC	Ceramic	10	39 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G391FWT	-	UTC	Ceramic	10	390 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G391GWT	-	UTC	Ceramic	10	390 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G391JWT	-	UTC	Ceramic	10	390 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G391KWT	-	UTC	Ceramic	10	390 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G392FWT	-	UTC	Ceramic	10	3900 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G392GWT	-	UTC	Ceramic	10	3900 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G392JWT	-	UTC	Ceramic	10	3900 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G392KWT	-	UTC	Ceramic	10	3900 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G393FWT	-	UTC	Ceramic	10	0.039 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G393GWT	-	UTC	Ceramic	10	0.039 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G393JWT	-	UTC	Ceramic	10	0.039 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G393KWT	-	UTC	Ceramic	10	0.039 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G3R3FWT	-	UTC	Ceramic	10	3.3 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R3GWT	-	UTC	Ceramic	10	3.3 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R3JWT	-	UTC	Ceramic	10	3.3 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R3KWT	-	UTC	Ceramic	10	3.3 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R9FWT	-	UTC	Ceramic	10	3.9 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R9GWT	-	UTC	Ceramic	10	3.9 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R9JWT	-	UTC	Ceramic	10	3.9 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G3R9KWT	-	UTC	Ceramic	10	3.9 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G470FWT	-	UTC	Ceramic	10	47 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G470GWT	-	UTC	Ceramic	10	47 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G470JWT	-	UTC	Ceramic	10	47 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G470KWT	-	UTC	Ceramic	10	47 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G471FWT	-	UTC	Ceramic	10	470 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G471GWT	-	UTC	Ceramic	10	470 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G471JWT	-	UTC	Ceramic	10	470 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G471KWT	-	UTC	Ceramic	10	470 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G472FWT	-	UTC	Ceramic	10	4700 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G472GWT	-	UTC	Ceramic	10	4700 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G472JWT	-	UTC	Ceramic	10	4700 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G472KWT	-	UTC	Ceramic	10	4700 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G473FWT	-	UTC	Ceramic	10	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G473GWT	-	UTC	Ceramic	10	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G473JWT	-	UTC	Ceramic	10	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G473KWT	-	UTC	Ceramic	10	0.047 uF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.08" (2.00mm)	Yes
CC0201C0G4R7FWT	-	UTC	Ceramic	10	4.7 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G4R7GWT	-	UTC	Ceramic	10	4.7 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G4R7JWT	-	UTC	Ceramic	10	4.7 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G4R7KWT	-	UTC	Ceramic	10	4.7 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G560FWT	-	UTC	Ceramic	10	56 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G560GWT	-	UTC	Ceramic	10	56 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G560JWT	-	UTC	Ceramic	10	56 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G560KWT	-	UTC	Ceramic	10	56 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G561FWT	-	UTC	Ceramic	10	560 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G561GWT	-	UTC	Ceramic	10	560 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G561JWT	-	UTC	Ceramic	10	560 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G561KWT	-	UTC	Ceramic	10	560 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G562FWT	-	UTC	Ceramic	10	5600 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G562GWT	-	UTC	Ceramic	10	5600 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G562JWT	-	UTC	Ceramic	10	5600 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G562KWT	-	UTC	Ceramic	10	5600 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G5R6FWT	-	UTC	Ceramic	10	5.6 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G5R6GWT	-	UTC	Ceramic	10	5.6 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G5R6JWT	-	UTC	Ceramic	10	5.6 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G5R6KWT	-	UTC	Ceramic	10	5.6 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G680FWT	-	UTC	Ceramic	10	68 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G680GWT	-	UTC	Ceramic	10	68 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G680JWT	-	UTC	Ceramic	10	68 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G680KWT	-	UTC	Ceramic	10	68 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G681FWT	-	UTC	Ceramic	10	680 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G681GWT	-	UTC	Ceramic	10	680 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G681JWT	-	UTC	Ceramic	10	680 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G681KWT	-	UTC	Ceramic	10	680 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G682FWT	-	UTC	Ceramic	10	6800 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G682GWT	-	UTC	Ceramic	10	6800 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G682JWT	-	UTC	Ceramic	10	6800 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G682KWT	-	UTC	Ceramic	10	6800 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G6R8FWT	-	UTC	Ceramic	10	6.8 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G6R8GWT	-	UTC	Ceramic	10	6.8 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G6R8JWT	-	UTC	Ceramic	10	6.8 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G6R8KWT	-	UTC	Ceramic	10	6.8 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G820FWT	-	UTC	Ceramic	10	82 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G820GWT	-	UTC	Ceramic	10	82 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G820JWT	-	UTC	Ceramic	10	82 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G820KWT	-	UTC	Ceramic	10	82 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G821FWT	-	UTC	Ceramic	10	820 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G821GWT	-	UTC	Ceramic	10	820 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G821JWT	-	UTC	Ceramic	10	820 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G821KWT	-	UTC	Ceramic	10	820 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G822FWT	-	UTC	Ceramic	10	8200 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G822GWT	-	UTC	Ceramic	10	8200 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G822JWT	-	UTC	Ceramic	10	8200 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G822KWT	-	UTC	Ceramic	10	8200 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.04" (0.95mm)	Yes
CC0201C0G8R2FWT	-	UTC	Ceramic	10	8.2 pF	-55°C to +125°C	C - Low Voltage	-	±1%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G8R2GWT	-	UTC	Ceramic	10	8.2 pF	-55°C to +125°C	C - Low Voltage	-	±2%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G8R2JWT	-	UTC	Ceramic	10	8.2 pF	-55°C to +125°C	C - Low Voltage	-	±5%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201C0G8R2KWT	-	UTC	Ceramic	10	8.2 pF	-55°C to +125°C	C - Low Voltage	-	±10%	C0G	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R101JWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R101KWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R101MWT	-	UTC	Ceramic	10	100 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R102JWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R102KWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R102MWT	-	UTC	Ceramic	10	1000 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R103JWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R103KWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R103MWT	-	UTC	Ceramic	10	10000 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R121JWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R121KWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R121MWT	-	UTC	Ceramic	10	120 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R122JWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R122KWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R122MWT	-	UTC	Ceramic	10	1200 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R151JWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R151KWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R151MWT	-	UTC	Ceramic	10	150 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R152JWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R152KWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R152MWT	-	UTC	Ceramic	10	1500 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R181JWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R181KWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R181MWT	-	UTC	Ceramic	10	180 pF	-55°C to +125°C	C - Low Voltage	-	±20%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R182JWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±5%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes
CC0201X7R182KWT	-	UTC	Ceramic	10	1800 pF	-55°C to +125°C	C - Low Voltage	-	±10%	X7R	0201	-	Cu/Ni/Sn	-	SMD	L 0.02" (0.60mm) x W 0.01" (0.30mm) x H 0.01" (0.30mm)	Yes

Rows per page:

Low Voltage MLCCs (C Series)

Low Voltage MLCCs (C Series)

Product Series Specifications

Overview

Additional Features

Typical Applications

Parametric Search

Additional Filters

Our Brands

Need to Buy?

Quick Links

Need Help?
