SMPS Filter Capacitor Assemblies

Product Series Specifications

General Parameters
Type: Switch mode power supply filter capacitor assembly
Grade: Hi-Rel / configurable assembly
Dielectric/Construction: X7R and NPO
Rated Voltage: 50 V to 500 V
Capacitance: Up to 270 μF (X7R) / up to 15.0 μF (NPO)
Sizes: Case codes 1 through 6

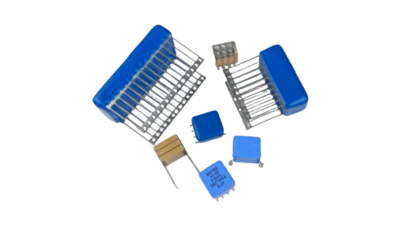

SMPS Filter Capacitor Assemblies

Overview

UTC’s broad line of switch mode power supply capacitor assemblies is designed for high-frequency input and output filtering, high-capacitance discharge circuits, and high- temperature filtering and decoupling. The family is characterized by low equivalent series resistance (ESR) and low equivalent series inductance (ESL), and is frequently used to replace tantalum and electrolytic capacitors in demanding applications. Customized solutions available.

Additional Features

  • Low ESR (Equivalent Series Resistance)
  • Low ESL (Equivalent Series Inductance)
  • Designed for high-frequency SMPS input and output filtering
  • Suitable for high-capacitance discharge circuits
  • Suitable for high-temperature filtering and decoupling
  • Frequently used to replace tantalum and electrolytic capacitors
  • Available in multiple case sizes and lead styles
  • Application-specific configurations available

Typical Applications

  • High-frequency input filtering
  • High-frequency output filtering
  • High-capacitance discharge circuits
  • High-temperature filtering and decoupling
  • Replacing tantalum and electrolytic capacitors in demanding applications

Parametric Search

Applied Filters: Brand: evans Product Family: tdd
Loading filters…
Brand
Capacitor Type
Voltage DC
Capacitance
Operating Temperature Range
Product Family
Tolerance

Additional Filters

Apply FiltersReset All
Results: 50
CompareProductDLA PNBrandCapacitor TypeVoltage DCCapacitanceOperating Temperature RangeProduct FamilyVoltage Rating - ACToleranceDielectricCase SizeESR (mΩ)TerminationLead Spacing (in/mm)Mounting TypeDimension (in/mm)RoHS
TDD101060315010-01EvansHybrid Wet Tantalum1060000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD101640315010-05EvansHybrid Wet Tantalum1640000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD102524315010-09EvansHybrid Wet Tantalum2524000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD103516315010-13EvansHybrid Wet Tantalum3516000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
40Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD105011315010-17EvansHybrid Wet Tantalum5011000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
50Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD106347215010-21EvansHybrid Wet Tantalum634700uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
50Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD108030215010-25EvansHybrid Wet Tantalum803000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
55Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD110022215010-29EvansHybrid Wet Tantalum1002200uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
65Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD111020215010-37EvansHybrid Wet Tantalum1102000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
85Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD112515215010-33EvansHybrid Wet Tantalum1251500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
65Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)
-
TDD201012415010-02EvansHybrid Wet Tantalum10120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD201680315010-06EvansHybrid Wet Tantalum1680000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD202548315010-10EvansHybrid Wet Tantalum2548000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD203532315010-14EvansHybrid Wet Tantalum3532000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD205022315010-18EvansHybrid Wet Tantalum5022000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD206394215010-22EvansHybrid Wet Tantalum639400uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD208060215010-26EvansHybrid Wet Tantalum806000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
27Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD210044215010-30EvansHybrid Wet Tantalum1004430uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
30Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)
-
TDD211040215010-38EvansHybrid Wet Tantalum1104000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
40Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD212530215010-34EvansHybrid Wet Tantalum1253000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
45Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)
-
TDD301018415010-03EvansHybrid Wet Tantalum10180000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD301612415010-07EvansHybrid Wet Tantalum16120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD302572315010-11EvansHybrid Wet Tantalum2572000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD303548315010-15EvansHybrid Wet Tantalum3548000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD305033315010-19EvansHybrid Wet Tantalum5033000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
17Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD306314315010-23EvansHybrid Wet Tantalum6314000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
17Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD308090215010-27EvansHybrid Wet Tantalum809000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
18Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD310066215010-31EvansHybrid Wet Tantalum1006600uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD311060215010-39EvansHybrid Wet Tantalum1106000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
27Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD312545215010-35EvansHybrid Wet Tantalum1254500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
25Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)
-
TDD401024415010-04EvansHybrid Wet Tantalum10240000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD401616415010-08EvansHybrid Wet Tantalum16160000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD402596315010-12EvansHybrid Wet Tantalum2596000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD405044315010-20EvansHybrid Wet Tantalum5044000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD406318315010-24EvansHybrid Wet Tantalum6318000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD408012315010-28EvansHybrid Wet Tantalum8012000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD410088215010-32EvansHybrid Wet Tantalum1008800uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD411080215010-40EvansHybrid Wet Tantalum1108000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD412560215010-36EvansHybrid Wet Tantalum1256000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
20Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
TDD501030415010-41EvansHybrid Wet Tantalum10300000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD501620415010-42EvansHybrid Wet Tantalum16200000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD502512415010-43EvansHybrid Wet Tantalum25120000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD503580315010-44EvansHybrid Wet Tantalum3580000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
10Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD505055315010-45EvansHybrid Wet Tantalum5055000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD506322315010-46EvansHybrid Wet Tantalum6322700uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD508015315010-47EvansHybrid Wet Tantalum8015000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD510011315010-48EvansHybrid Wet Tantalum10011000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD511010315010-49EvansHybrid Wet Tantalum11010000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD512575215010-50EvansHybrid Wet Tantalum1257500uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
15Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)
-
TDD403564315010-16EvansHybrid Wet Tantalum3564000uF-55°C to +125°CTDD
-
±20% Std (±10% Optional)Ta₂O₅
-
12Sn63/Pb37
-
Thru-holeL 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)
-
