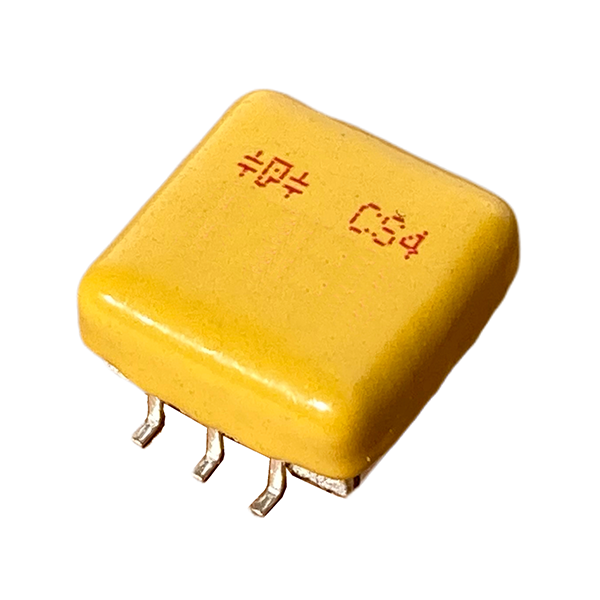

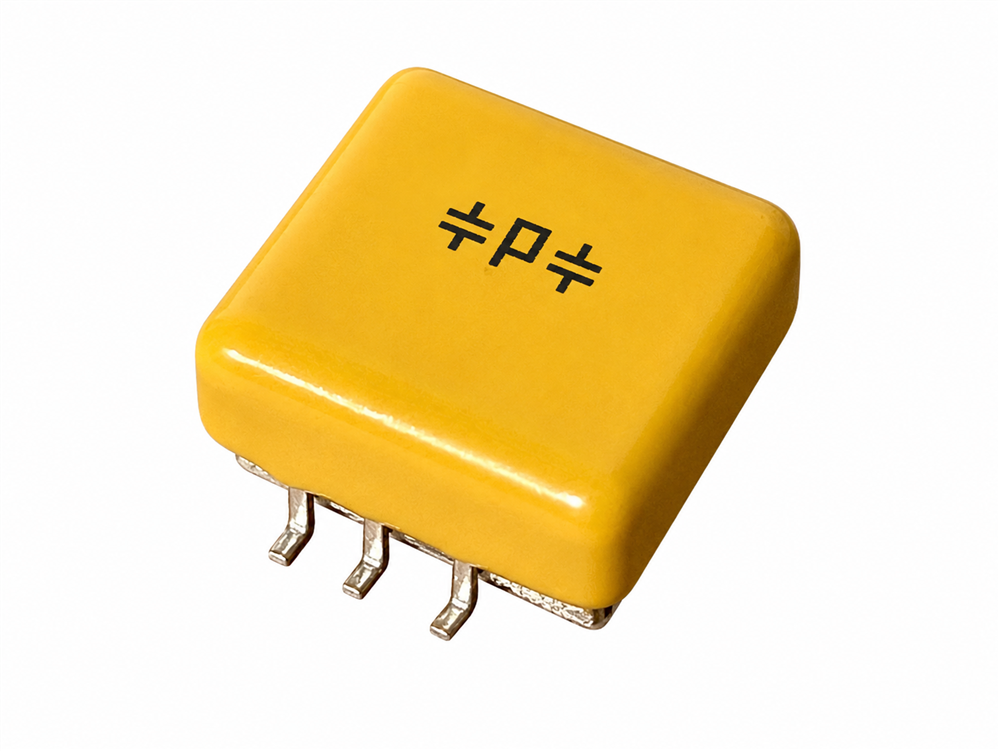

405K100CS4G-FA
Product Specifications
| General Parameters | |
|---|---|
| Brand: | Paktron |
| Capacitor Type: | Film |
| Voltage DC: | 100 |
| Capacitance: | 4 uF |
| Operating Temperature Range: | -55°C to +125°C |
| Product Family: | Capstick® |
| Voltage Rating - AC: | 80V |
| Series: | CS |
| Applications: | EMI, RFI Suppression High Pulse, DV/DT |
| Features: | Low ESR, High Temperature |
| Tolerance: | ±10% |
| Dielectric: | Metallized Polyester (PET) |
| ESR (mΩ): | 7 |
| Termination: | Sn Alloy |
| Lead Spacing (in/mm): | 0.394" (10mm) |
| Mounting Type: | SMD |
| Dimension (in/mm): | L 0.450" (11.4mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm) |
| RoHS: | Yes |
| Package / Case: | 6-Pin SMD |
| Insulation Resistance (25C): | 1000MΩ·µF |
| Construction: | Stacked |
| Self-Healing: | Yes |
| Max Ripple Current (A): | 11.5 |
| Hermetic: | No |
| Lead Configuration: | Gull Wing |
| Length (in/mm): | 0.450" (11.4mm) |
| Width (in/mm): | 0.500" (12.7mm) |
| Height (in/mm): | 0.250" (6.3mm) |
| Weight (g): | 1.2 |
| Lifetime Hours: | 1, 000 hours @ 85 °C, 1.25× VDC |
| Pb Free: | Yes |
