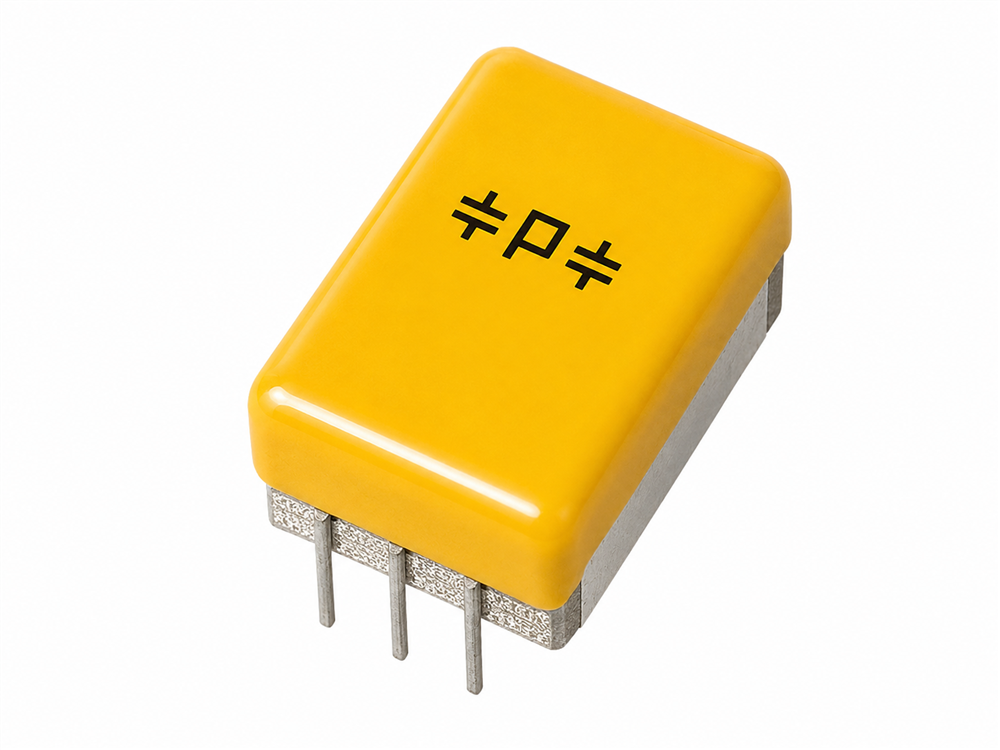

334K400CS6
Product Specifications
| General Parameters | |
|---|---|
| Brand: | Paktron |
| Capacitor Type: | Film |
| Voltage DC: | 400 |
| Capacitance: | 0.33 uF |
| Operating Temperature Range: | -55°C to +125°C |
| Product Family: | Capstick® |
| Voltage Rating - AC: | 250V |
| Series: | CS |
| Applications: | EMI, RFI Suppression High Pulse, DV/DT |
| Features: | Low ESR, High Temperature |
| Tolerance: | ±10% |
| Dielectric: | Metallized Polyester (PET) |
| ESR (mΩ): | 12 |
| Termination: | Sn63/Pb37 |
| Lead Spacing (in/mm): | 0.591" (15mm) |
| Mounting Type: | Thru-hole |
| Dimension (in/mm): | L 0.435" (11.0mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm) |
| RoHS: | No |
| Package / Case: | 6-Pin DIP |
| Insulation Resistance (25C): | 1000MΩ·µF |
| Construction: | Stacked |
| Self-Healing: | Yes |
| Max Ripple Current (A): | 6 |
| Hermetic: | No |
| Lead Configuration: | DIP |
| Length (in/mm): | 0.435" (11.0mm) |
| Width (in/mm): | 0.700" (17.8mm) |
| Height (in/mm): | 0.320" (8.1mm) |
| Weight (g): | 2.2 |
| Lifetime Hours: | 1, 000 hours @ 85 °C, 1.25× VDC |
| Pb Free: | No |
