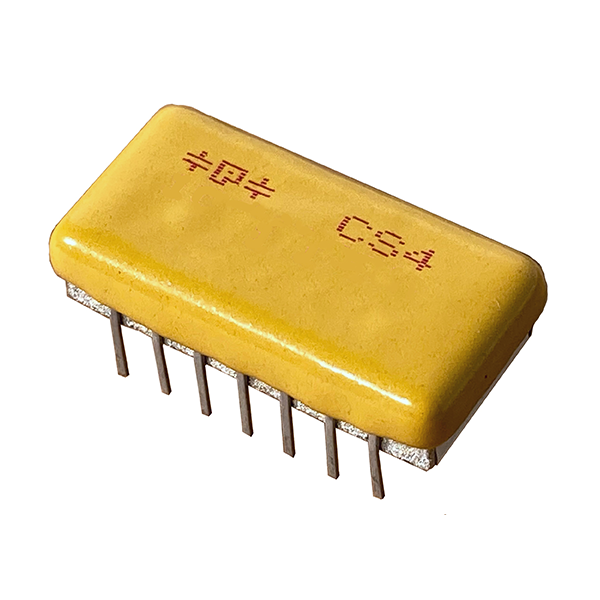

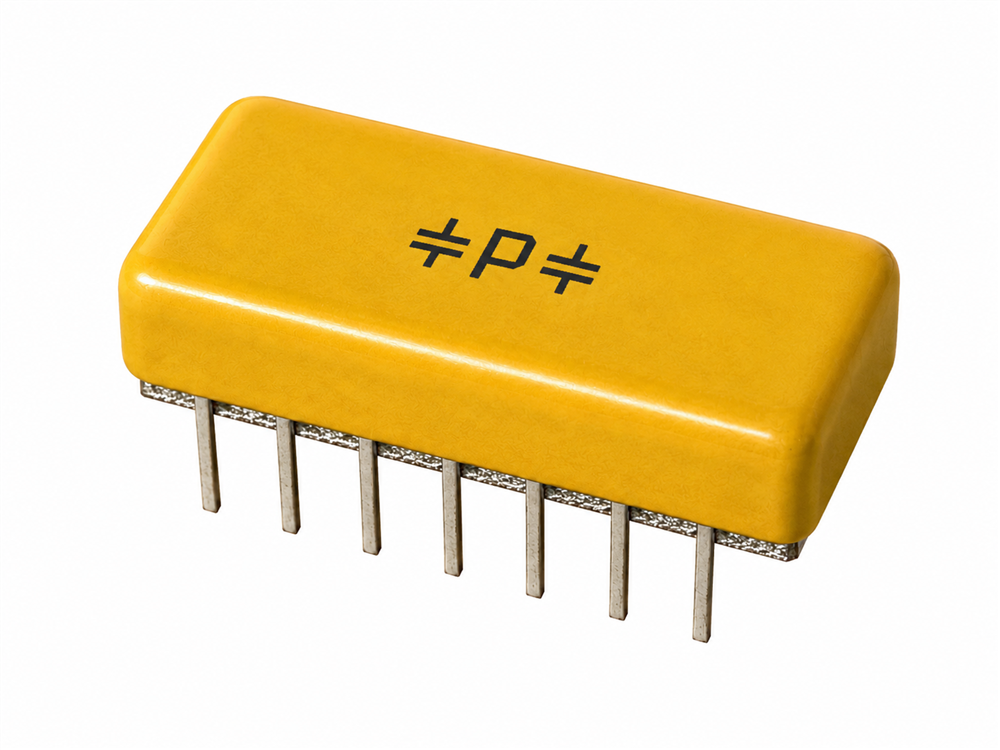

106K100CS4

General Parameters
Brand:	Paktron
Capacitor Type:	Film
Voltage DC:	100
Capacitance:	10 uF
ESR (mΩ):	3
Product Family:	Capstick®
Series:	CS
Operating Temperature Range:	-55°C to +125°C
Voltage Rating - AC:	80V
Applications:	EMI, RFI Suppression High Pulse, DV/DT
Features:	Low ESR, High Temperature
Tolerance:	±10%
Dielectric:	Metallized Polyester (PET)
Termination:	Sn63/Pb37
Lead Spacing (in/mm):	0.394" (10mm)
Mounting Type:	Thru-hole
# Leads (per side):	7
Dimension (in/mm):	L 0.995" (25.3mm) x W 0.500" (12.7mm) x H 0.250" (6.3mm)
RoHS:	No
Package / Case:	14-Pin DIP
Insulation Resistance (25C):	1000MΩ·µF
Construction:	Stacked
Self-Healing:	Yes
Max Ripple Current (A):	11.5
Hermetic:	No
Lead Configuration:	DIP
Length (in/mm):	0.995" (25.3mm)
Width (in/mm):	0.500" (12.7mm)
Height (in/mm):	0.250" (6.3mm)
Weight (g):	1.2
Lifetime Hours:	1, 000 hours @ 85 °C, 1.25× VDC
Pb Free:	No

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
