106K050CS4-FA

General Parameters
Brand:	Paktron
Capacitor Type:	Film
Voltage DC:	50
Capacitance:	10 uF
ESR (mΩ):	3
Product Family:	Capstick®
Series:	CS
Operating Temperature Range:	-55°C to +125°C
Voltage Rating - AC:	35V
Applications:	EMI, RFI Suppression High Pulse, DV/DT
Features:	Low ESR, High Temperature
Tolerance:	±10%
Dielectric:	Metallized Polyester (PET)
Termination:	Sn Alloy
Lead Spacing (in/mm):	0.394" (10mm)
Mounting Type:	Thru-hole
# Leads (per side):	5
Dimension (in/mm):	L 0.620" (15.7mm) x W 0.500" (12.7mm) x H 0.320" (8.1mm)
RoHS:	Yes
Package / Case:	10-Pin DIP
Insulation Resistance (25C):	1000MΩ·µF
Construction:	Stacked
Self-Healing:	Yes
Max Ripple Current (A):	11.5
Hermetic:	No
Lead Configuration:	DIP
Length (in/mm):	0.620" (15.7mm)
Width (in/mm):	0.500" (12.7mm)
Height (in/mm):	0.320" (8.1mm)
Weight (g):	1.2
Lifetime Hours:	1, 000 hours @ 85 °C, 1.25× VDC
Pb Free:	Yes

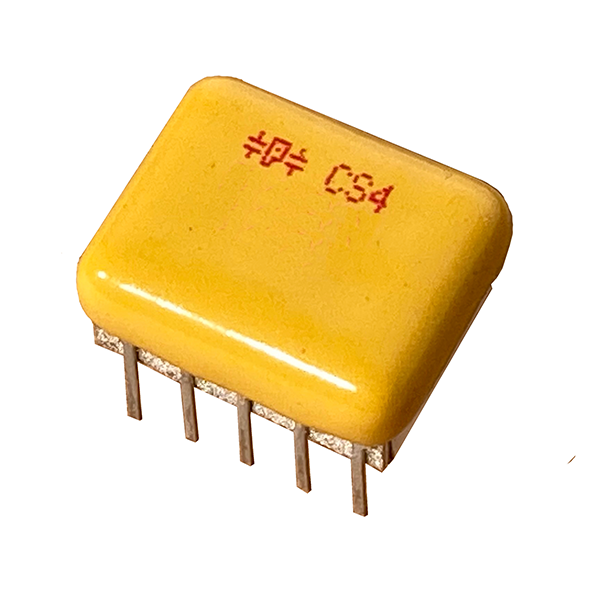

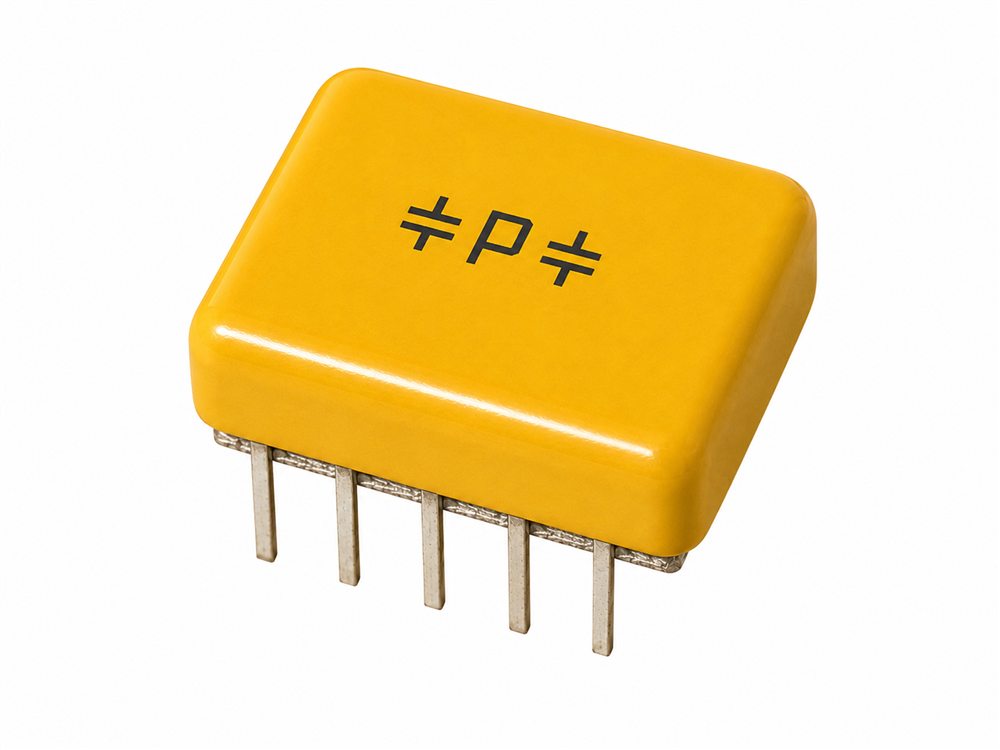

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
