XV Series

Product Series Specifications

General Parameters
Type: RF Ceramic - Vertical Layer Capacitor
Grade: Hi-Rel
Dielectric/Construction: X5R, X7R
Rated Voltage: 6.3V to 100V
Capacitance: 47pF to 220, 000pF
Sizes: 1010 – 5080
Operating Temp: -55 °C to +125 °C
XV Series

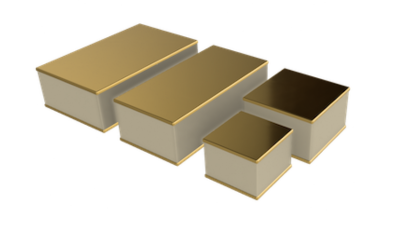

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.

Overview

Eulex XV vertical layer capacitors feature gold (Au) metallization for wire bonding, solder, or epoxy die attach to high-purity gold connector pads. Built with Class II dielectric systems and offered in a range of case sizes, voltages, and capacitance values, the XV series is designed for high-frequency performance in compact form factors.

Additional Features

  • High-frequency response
  • Gold (Au) metallization for wire bonding, solder, or epoxy die attach
  • Class II dielectric options
  • RoHS compliant
  • Small-size offerings, including 1010
  • Multiple case sizes, voltage ratings, and capacitance options
  • Custom sizes available
  • ESD waffle pack packaging
  • X5R and X7R dielectric options with ±20% capacitance tolerance

Typical Applications

  • DC blocking
  • Tuning
  • RF bypass
  • Filtering
  • Microwave applications
