Hermetic, High Capacitance, High Endurance, High Reliability, High Shock & Vibration, High Ripple Current, Long Life, Low ESR, Low Leakage Current, MIL, Power Dense, Stability, Wide Temperature Operating Range
Applications:
Aerospace & Defense, Directed Energy & Pulsed Power, Radar & RF Transmit/Pulse Modules, Power Hold-Up & Uninterruptible Power, Electric Propulsion & Space Power, Electronic Warfare & Ruggedized Computing, Power Conversion & DC-Link Filtering, Harsh Environment, General Industrial Energy Storage
Voltage 75°C:
125
Voltage 85°C:
125
Voltage 125°C:
85
DCL @25°C (µA):
15
DCL @ 85 °C (µA):
≤0.01 CV or 3 μA
Tolerance:
±20% Std (±10% Optional)
Dielectric:
Ta₂O₅
ESR (mΩ):
1000
Termination:
Sn63/Pb37
Mounting Type:
Thru-hole
Dimension (in/mm):
L 0.641" (16.28 mm) x Diam 0.281" (7.14mm)
RoHS:
Available
Package / Case:
Axial
Rated Temp (°C):
85
Hermetic:
Yes
Lifetime @ Rated Temp & Rated Voltage:
2000 hours
Height (in/mm):
0.641" (16.28 mm)
Diameter (in/mm):
0.281" (7.14mm)
Weight (g):
5.7
Pb Free:
Available

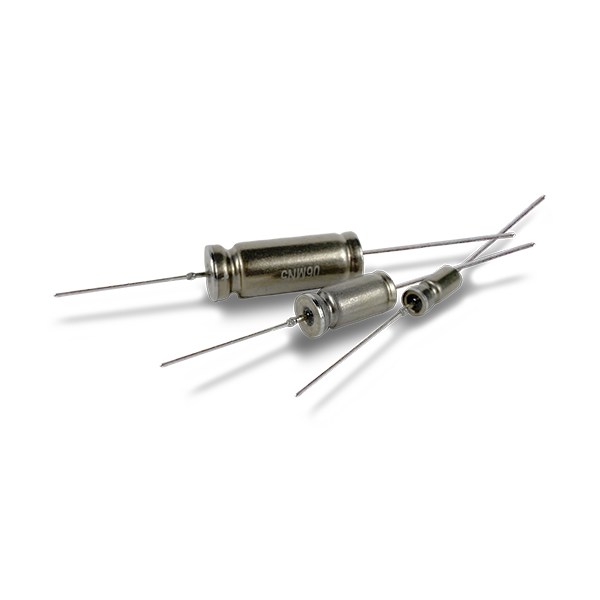

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
