844K200CC6G-FA

General Parameters
Brand:	Paktron
Capacitor Type:	Film
Voltage DC:	200
Capacitance:	0.84 uF
Product Family:	Capstick®
Series:	CC
Operating Temperature Range:	-55°C to +125°C
Voltage Rating - AC:	140V
Applications:	EMI, RFI Suppression High Pulse, DV/DT
Features:	Compact, stable, high frequency optimized
Tolerance:	±10%
Dielectric:	Metallized Polymer
Termination:	Sn Alloy
Lead Spacing (in/mm):	0.591" (15mm)
Mounting Type:	SMD
Dimension (in/mm):	L 0.460" (11.7mm) x W 0.700" (17.8mm) x H 0.320" (8.1mm)
RoHS:	Yes
Package / Case:	6-Pin SMD
Insulation Resistance (25C):	1000MΩ·µF
Construction:	Stacked
Self-Healing:	Yes
Max Ripple Current (A):	6.5
Hermetic:	No
Lead Configuration:	Gull Wing
Length (in/mm):	0.460" (11.7mm)
Width (in/mm):	0.700" (17.8mm)
Height (in/mm):	0.320" (8.1mm)
Weight (g):	6
Lifetime Hours:	1, 000 hours @ 85 °C, 1.25× VDC
Pb Free:	Yes

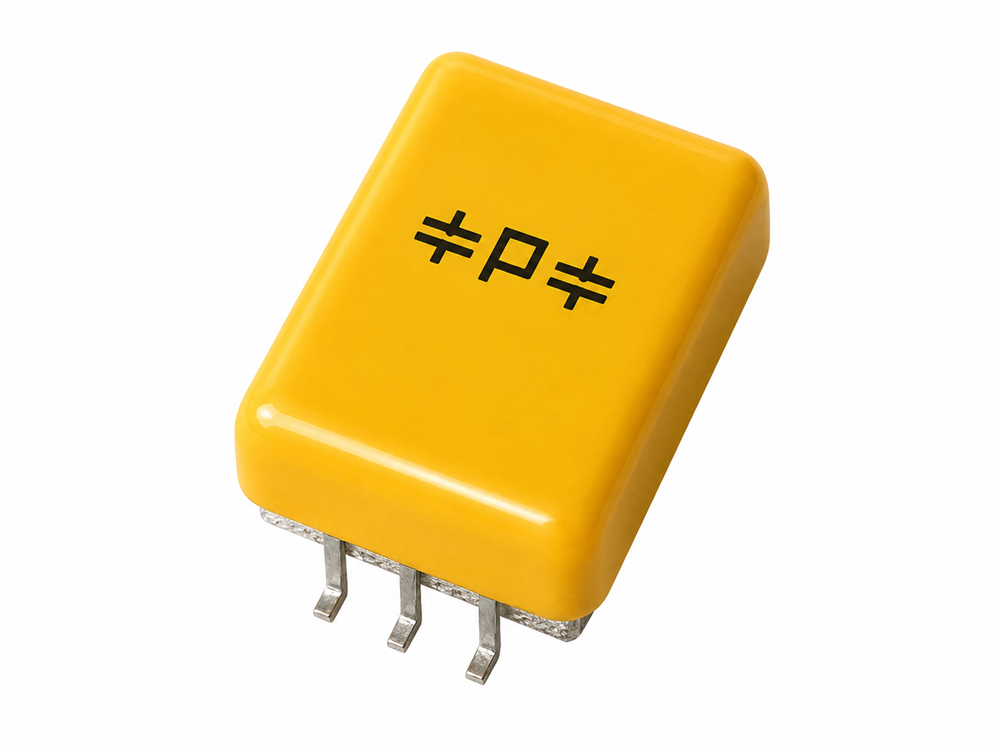

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
