844K200RC6-FA

General Parameters
Brand:	Paktron
Voltage DC:	200V
Capacitance:	0.84uF
Operating Temperature Range:	-55°C - 150°C
Product Family:	Angstor®
Voltage Rating - AC:	140V
Series:	RC
Attributes:	Low ESR, ultra low D.F, High Temperature
Applications:	resonant power conversion DC-Link DC block EMI suppression
Max dv/dt (V/us):	6.1A
Tolerance:	±10%
Dielectric:	Polymer, Metallized
ESR (mΩ):	17mOhm
Termination:	PC Pins
Lead Spacing (in/mm):	0.591" (15mm)
Mounting Type:	Thru-hole
Dimension (in/mm):	0.650" L x 0.290" W (16.5mm x 7.4mm)
Package / Case:	Radial
Height (in/mm):	0.440" (11.1mm)
Resonant Frequency (MHz):	1.75

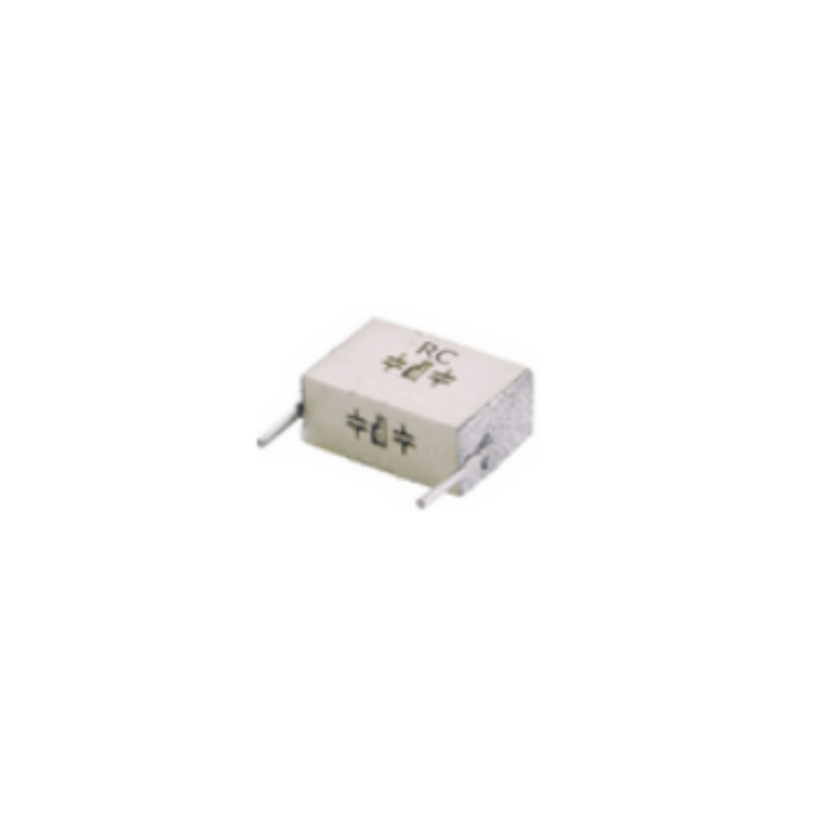

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
