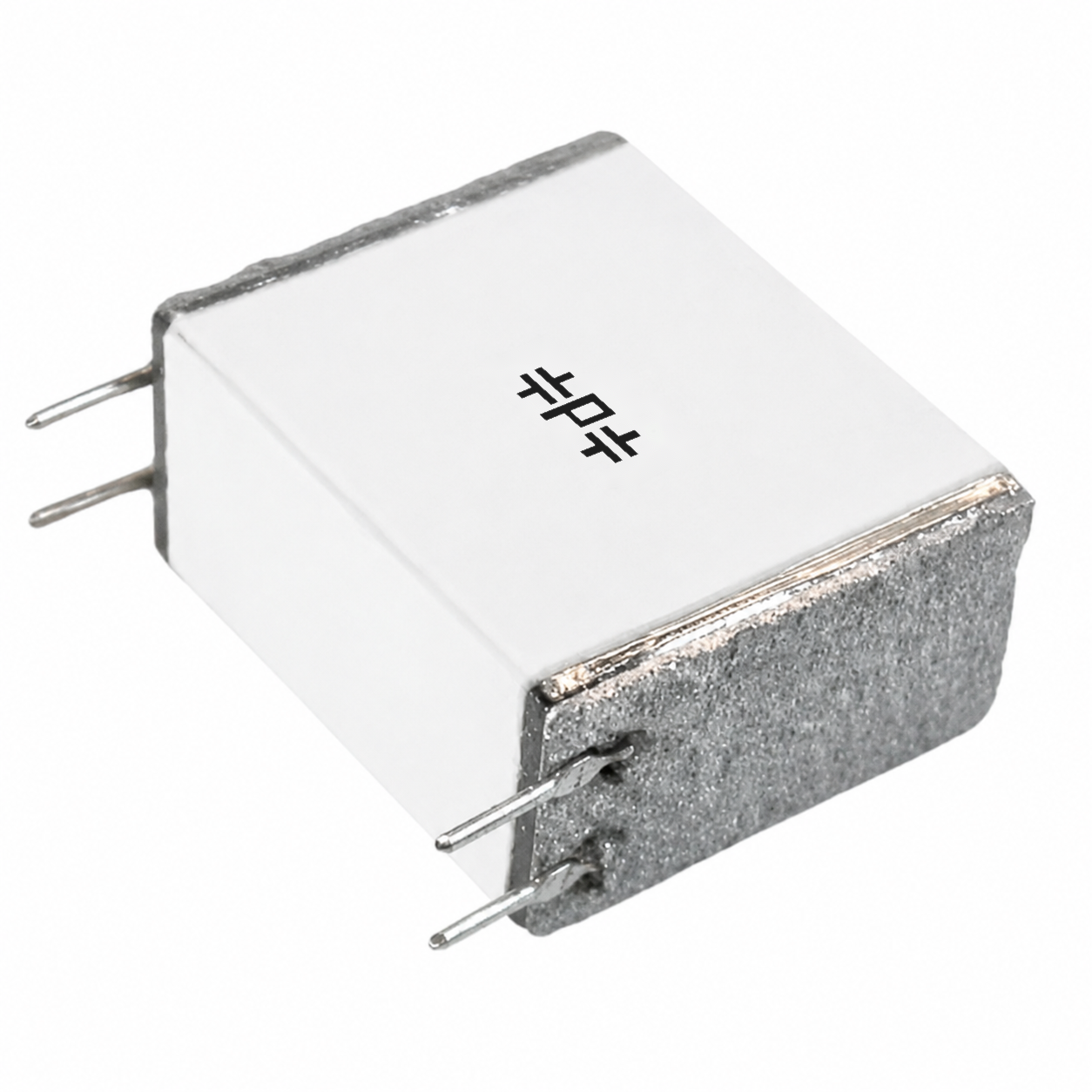

804K1000RA11-FA
Product Specifications
| General Parameters | |
|---|---|
| Brand: | Paktron |
| Capacitor Type: | Film |
| Voltage DC: | 1000 |
| Capacitance: | 0.8 uF |
| Operating Temperature Range: | -55°C to +125°C |
| Product Family: | Angstor® |
| Voltage Rating - AC: | 500V |
| Series: | RA11 |
| Applications: | EMI, RFI Suppression High Pulse, DV/DT |
| Features: | Low ESR, ultra low D.F, High Temperature |
| Tolerance: | ±10% |
| Dielectric: | Metallized Polyester (PET) |
| ESR (mΩ): | 28 |
| Termination: | Sn Alloy |
| Lead Spacing (in/mm): | 1.1" (27.5mm) |
| Mounting Type: | Thru-hole |
| Dimension (in/mm): | L 1.15" (29.2mm) x W 0.35" (8.9mm) x H 1.05" (26.7mm) |
| RoHS: | Yes |
| Package / Case: | Radial |
| Insulation Resistance (25C): | 1000MΩ·µF |
| Construction: | Stacked |
| Self-Healing: | Yes |
| Max Ripple Current (A): | 5.8 |
| Hermetic: | No |
| Lead Configuration: | Radial Lead |
| Length (in/mm): | 1.15" (29.2mm) |
| Width (in/mm): | 0.35" (8.9mm) |
| Height (in/mm): | 1.05" (26.7mm) |
| Weight (g): | 8.2 |
| Lifetime Hours: | 1, 000 hours at 85 °C/1.25×VDC with ΔC/C ≤ 5 % |
| Pb Free: | Yes |
