XG2 Series

Product Series Specifications

General Parameters
Type: RF Ceramic - Single-layer SMD Mount Gap Capacitor
Grade: Hi-Rel/ Mission-critical RF and microwave component
Dielectric/Construction: Porcelain, Class I NPQ, Class I NP0, Class I NPS, Class II X7R, and Class III Y5V
Rated Voltage: 6.3V to 100V
Capacitance: 0.1 pF to 18, 000 pF
Sizes: 0201 to 0806
Operating Temp: -55 °C to +125 °C

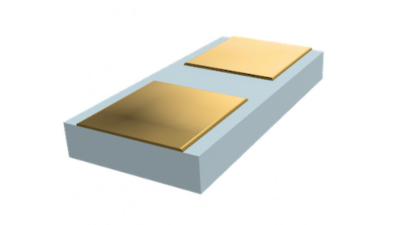

XG2 Series
Product image is for representation purposes only. Refer to the product datasheet for exact specifications.

Overview

The XG2 series is a single-layer SMD mount gap capacitor with Pt or Au metallization for solder or epoxy die attach. It is offered in multiple dielectric families, voltage ratings, capacitance tolerances, and small- form-factor case sizes for high-frequency and precision electronic applications.

Additional Features

  • 2-terminal design
  • Novel embedded-electrode capacitor design
  • Eliminates wire bonds and vias
  • Reduced inductance, higher SRF, improved impedance
  • Higher capacitance density
  • Extended frequency performance beyond 67 GHz

Typical Applications

  • RF and microwave circuits
  • High-frequency coupling and tuning networks
  • Precision impedance matching applications
  • Hybrid microelectronics and chip-and-wire assemblies
  • Designs requiring solder or conductive epoxy die attach

Parametric Search

Applied Filters: Brand: eulex Product Family: xg2 (2-terminal)
Loading filters…
Brand
Series
Capacitor Type
Voltage DC
Capacitance
Product Family
Operating Temperature Range

Additional Filters

Apply FiltersReset All
Results: 44
CompareImageProductDLA PNBrandSeriesCapacitor TypeVoltage DCCapacitanceESR (mΩ)Product FamilyOperating Temperature RangeVoltage Rating - ACToleranceDielectricCase SizeTerminationLead Spacing (in/mm)Mounting Type# LeadsDimension (in/mm)RoHS
XGA15X471KPW
XGA15X471KPW
-
EulexXG2 Gap CapacitorCeramic6.3470 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±10%X0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGA15X471MPW
XGA15X471MPW
-
EulexXG2 Gap CapacitorCeramic6.3470 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%X0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGA20C101KPW
XGA20C101KPW
-
EulexXG2 Gap CapacitorCeramic6.3100 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±10%C0502Pt
-
SMD
-
L 0.05" (1.27mm) x W 0.02" (0.51mm) x H 0.01" (0.25mm)Yes
XGA20C101MPW
XGA20C101MPW
-
EulexXG2 Gap CapacitorCeramic6.3100 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%C0502Pt
-
SMD
-
L 0.05" (1.27mm) x W 0.02" (0.51mm) x H 0.01" (0.25mm)Yes
XGB10C4R7BPW
XGB10C4R7BPW
-
EulexXG2 Gap CapacitorCeramic1004.7 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.1pFC0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGB10C4R7CPW
XGB10C4R7CPW
-
EulexXG2 Gap CapacitorCeramic1004.7 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFC0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGB10C4R7DPW
XGB10C4R7DPW
-
EulexXG2 Gap CapacitorCeramic1004.7 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.5pFC0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGB10P0R1BPW
XGB10P0R1BPW
-
EulexXG2 Gap CapacitorCeramic1000.1 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.1pFP0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGB15C220KPW
XGB15C220KPW
-
EulexXG2 Gap CapacitorCeramic10022 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±10%C0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15C220MPW
XGB15C220MPW
-
EulexXG2 Gap CapacitorCeramic10022 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%C0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15P1R0BPW
XGB15P1R0BPW
-
EulexXG2 Gap CapacitorCeramic1001 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.1pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15P1R0CPW
XGB15P1R0CPW
-
EulexXG2 Gap CapacitorCeramic1001 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15P1R0DPW
XGB15P1R0DPW
-
EulexXG2 Gap CapacitorCeramic1001 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.5pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15Q2R2BPW
XGB15Q2R2BPW
-
EulexXG2 Gap CapacitorCeramic1002.2 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.1pFQ0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15Q2R2CPW
XGB15Q2R2CPW
-
EulexXG2 Gap CapacitorCeramic1002.2 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFQ0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGB15Q2R2DPW
XGB15Q2R2DPW
-
EulexXG2 Gap CapacitorCeramic1002.2 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.5pFQ0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGC40Y103KPW
XGC40Y103KPW
-
EulexXG2 Gap CapacitorCeramic1010000 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±10%Y0805Pt
-
SMD
-
L 0.08" (2.03mm) x W 0.05" (1.27mm) x H 0.01" (0.36mm)Yes
XGC40Y103MPW
XGC40Y103MPW
-
EulexXG2 Gap CapacitorCeramic1010000 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0805Pt
-
SMD
-
L 0.08" (2.03mm) x W 0.05" (1.27mm) x H 0.01" (0.36mm)Yes
XGE10X300MPW
XGE10X300MPW
-
EulexXG2 Gap CapacitorCeramic1630 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%X0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGE10Y201MPW
XGE10Y201MPW
-
EulexXG2 Gap CapacitorCeramic16200 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGE10Y221KPW
XGE10Y221KPW
-
EulexXG2 Gap CapacitorCeramic16220 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±10%Y0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGE10Y221MPW
XGE10Y221MPW
-
EulexXG2 Gap CapacitorCeramic16220 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGE15C470KPW
XGE15C470KPW
-
EulexXG2 Gap CapacitorCeramic1647 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±10%C0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGE15C470MPW
XGE15C470MPW
-
EulexXG2 Gap CapacitorCeramic1647 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%C0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGE15N100KPW
XGE15N100KPW
-
EulexXG2 Gap CapacitorCeramic1610 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±10%N0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGE15N100MPW
XGE15N100MPW
-
EulexXG2 Gap CapacitorCeramic1610 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%N0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGE20Y222KPW
XGE20Y222KPW
-
EulexXG2 Gap CapacitorCeramic162200 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±10%Y0502Pt
-
SMD
-
L 0.05" (1.27mm) x W 0.02" (0.51mm) x H 0.01" (0.25mm)Yes
XGE20Y222MPW
XGE20Y222MPW
-
EulexXG2 Gap CapacitorCeramic162200 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0502Pt
-
SMD
-
L 0.05" (1.27mm) x W 0.02" (0.51mm) x H 0.01" (0.25mm)Yes
XGE25Y472KPW
XGE25Y472KPW
-
EulexXG2 Gap CapacitorCeramic164700 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±10%Y0803Pt
-
SMD
-
L 0.08" (2.03mm) x W 0.03" (0.76mm) x H 0.01" (0.25mm)Yes
XGE25Y472MPW
XGE25Y472MPW
-
EulexXG2 Gap CapacitorCeramic164700 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0803Pt
-
SMD
-
L 0.08" (2.03mm) x W 0.03" (0.76mm) x H 0.01" (0.25mm)Yes
XGG15C300MPW
XGG15C300MPW
-
EulexXG2 Gap CapacitorCeramic5030 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%C0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15N100MPW
XGG15N100MPW
-
EulexXG2 Gap CapacitorCeramic5010 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%N0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15P0R5BPW
XGG15P0R5BPW
-
EulexXG2 Gap CapacitorCeramic500.5 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.10pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15P0R7CPW
XGG15P0R7CPW
-
EulexXG2 Gap CapacitorCeramic500.7 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15P1R0CPW
XGG15P1R0CPW
-
EulexXG2 Gap CapacitorCeramic501 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFP0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15Q1R5CPW
XGG15Q1R5CPW
-
EulexXG2 Gap CapacitorCeramic501.5 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFQ0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15Q2R0CPW
XGG15Q2R0CPW
-
EulexXG2 Gap CapacitorCeramic502 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.25pFQ0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15X101MPW
XGG15X101MPW
-
EulexXG2 Gap CapacitorCeramic50100 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%X0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15X181MPW
XGG15X181MPW
-
EulexXG2 Gap CapacitorCeramic50180 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±20%X0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG15Y122MPW
XGG15Y122MPW
-
EulexXG2 Gap CapacitorCeramic501200 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGG25Y322MPW
XGG25Y322MPW
-
EulexXG2 Gap CapacitorCeramic503200 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0803Pt
-
SMD
-
L 0.08" (2.03mm) x W 0.03" (0.76mm) x H 0.01" (0.25mm)Yes
XGL10P0R2BPW
XGL10P0R2BPW
-
EulexXG2 Gap CapacitorCeramic250.2 pF
-
XG2 (2-Terminal)-55°C to +125°C
-
±0.1pFP0201Pt
-
SMD
-
L 0.02" (0.51mm) x W 0.01" (0.30mm) x H 0.01" (0.23mm)Yes
XGL15Y102KPW
XGL15Y102KPW
-
EulexXG2 Gap CapacitorCeramic251000 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±10%Y0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
XGL15Y102MPW
XGL15Y102MPW
-
EulexXG2 Gap CapacitorCeramic251000 pF
-
XG2 (2-Terminal)-30°C to +85°C
-
±20%Y0402Pt
-
SMD
-
L 0.04" (1.02mm) x W 0.02" (0.51mm) x H 0.01" (0.23mm)Yes
