MegaCap Type (BC Series) UTC’s MegaCap

UTC’s MegaCap

Product Series Specifications

General Parameters
Type:	Leaded and stacked multilayer ceramic capacitor (MLCC)
Grade:	Hi-Rel/ Industrial/AEC-Q200 options
Dielectric/Construction:	Available in both C0G and X7R dielectrics, with single-chip and multi-chip stacks and J- and L-tab leads
Rated Voltage:	Up to 1000V
Capacitance:	C0G: 1, 000 pF to 220, 000 pF X7R: 10, 000 pF to 47, 000, 000 pF
Sizes:	1210, 1812, 1825, 2220, 2225
Operating Temp:	55 °C to +125°C

Datasheet

Request a Quote

Talk to an Engineer

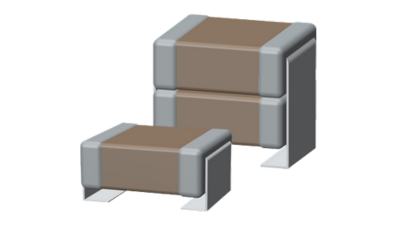

Test - UTC’s MegaCap Type (BC Series) technology in a leaded and stacked format delivers capacitance performance typically associated with much larger footprints. The leaded configuration reduces strain on the part in stressful mechanical and thermal environments. With rugged construction, high capacitance values, and available voltages to 1000 V, BC Series is well suited for industrial and automotive environments. It is available in both C0G and X7R dielectrics, with single- and multi-chip stacks and J- and L-tab leads. Custom configurations and higher capacitances are also available

Higher capacitance on the same footprint
High mechanical and thermal endurance
Excellent vibration performance
AEC-Q200 options available
RoHS compliant
Single-chip and stacked configurations with J- and L-tab-leads
Custom configurations and higher capacitances available

Industrial smoothing and decoupling
Resonant charging systems
DC to DC converters
High voltage coupling/DC blocking
Power supplies
Snubbers in high frequency power converters

Product	DLA PN	Brand	Capacitor Type	Voltage DC	Capacitance	Operating Temperature Range	Product Family	Voltage Rating - AC	Tolerance	Dielectric	Case Size	ESR (mΩ)	Termination	Lead Spacing (in/mm)	Mounting Type	Dimension (in/mm)	RoHS
TDD1010603	15010-01	Evans	Hybrid Wet Tantalum	10	60000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1016403	15010-05	Evans	Hybrid Wet Tantalum	16	40000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1025243	15010-09	Evans	Hybrid Wet Tantalum	25	24000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1035163	15010-13	Evans	Hybrid Wet Tantalum	35	16000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1050113	15010-17	Evans	Hybrid Wet Tantalum	50	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1063472	15010-21	Evans	Hybrid Wet Tantalum	63	4700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	50	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1080302	15010-25	Evans	Hybrid Wet Tantalum	80	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	55	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1100222	15010-29	Evans	Hybrid Wet Tantalum	100	2200uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1110202	15010-37	Evans	Hybrid Wet Tantalum	110	2000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	85	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD1125152	15010-33	Evans	Hybrid Wet Tantalum	125	1500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	65	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.31" (7.87 mm)	-
TDD2010124	15010-02	Evans	Hybrid Wet Tantalum	10	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2016803	15010-06	Evans	Hybrid Wet Tantalum	16	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2025483	15010-10	Evans	Hybrid Wet Tantalum	25	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2035323	15010-14	Evans	Hybrid Wet Tantalum	35	32000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2050223	15010-18	Evans	Hybrid Wet Tantalum	50	22000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2063942	15010-22	Evans	Hybrid Wet Tantalum	63	9400uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2080602	15010-26	Evans	Hybrid Wet Tantalum	80	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2100442	15010-30	Evans	Hybrid Wet Tantalum	100	4430uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	30	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.46" (11.68 mm)	-
TDD2110402	15010-38	Evans	Hybrid Wet Tantalum	110	4000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	40	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD2125302	15010-34	Evans	Hybrid Wet Tantalum	125	3000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	45	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.45" (11.43 mm)	-
TDD3010184	15010-03	Evans	Hybrid Wet Tantalum	10	180000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3016124	15010-07	Evans	Hybrid Wet Tantalum	16	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3025723	15010-11	Evans	Hybrid Wet Tantalum	25	72000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3035483	15010-15	Evans	Hybrid Wet Tantalum	35	48000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3050333	15010-19	Evans	Hybrid Wet Tantalum	50	33000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3063143	15010-23	Evans	Hybrid Wet Tantalum	63	14000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	17	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3080902	15010-27	Evans	Hybrid Wet Tantalum	80	9000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	18	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3100662	15010-31	Evans	Hybrid Wet Tantalum	100	6600uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3110602	15010-39	Evans	Hybrid Wet Tantalum	110	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	27	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD3125452	15010-35	Evans	Hybrid Wet Tantalum	125	4500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	25	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.6" (15.24 mm)	-
TDD4010244	15010-04	Evans	Hybrid Wet Tantalum	10	240000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4016164	15010-08	Evans	Hybrid Wet Tantalum	16	160000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4025963	15010-12	Evans	Hybrid Wet Tantalum	25	96000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4050443	15010-20	Evans	Hybrid Wet Tantalum	50	44000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4063183	15010-24	Evans	Hybrid Wet Tantalum	63	18000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4080123	15010-28	Evans	Hybrid Wet Tantalum	80	12000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4100882	15010-32	Evans	Hybrid Wet Tantalum	100	8800uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4110802	15010-40	Evans	Hybrid Wet Tantalum	110	8000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD4125602	15010-36	Evans	Hybrid Wet Tantalum	125	6000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	20	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
TDD5010304	15010-41	Evans	Hybrid Wet Tantalum	10	300000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5016204	15010-42	Evans	Hybrid Wet Tantalum	16	200000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5025124	15010-43	Evans	Hybrid Wet Tantalum	25	120000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5035803	15010-44	Evans	Hybrid Wet Tantalum	35	80000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	10	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5050553	15010-45	Evans	Hybrid Wet Tantalum	50	55000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5063223	15010-46	Evans	Hybrid Wet Tantalum	63	22700uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5080153	15010-47	Evans	Hybrid Wet Tantalum	80	15000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5100113	15010-48	Evans	Hybrid Wet Tantalum	100	11000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5110103	15010-49	Evans	Hybrid Wet Tantalum	110	10000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD5125752	15010-50	Evans	Hybrid Wet Tantalum	125	7500uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	15	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.905" (23 mm)	-
TDD4035643	15010-16	Evans	Hybrid Wet Tantalum	35	64000uF	-55°C to +125°C	TDD	-	±20% Std (±10% Optional)	Ta₂O₅	-	12	Sn63/Pb37	-	Thru-hole	L 1.40 (35.6mm) x W 1.40 (35.6mm) x H 0.75" (19.05 mm)	-
