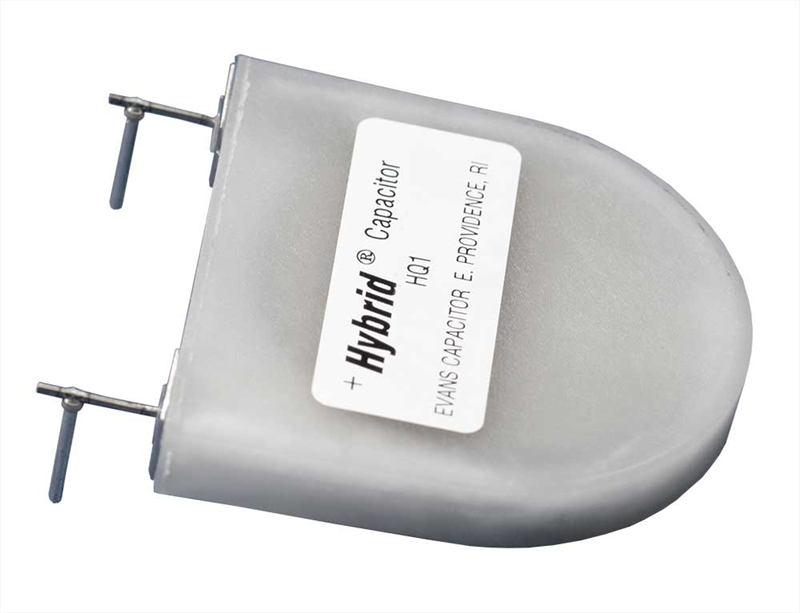

HQ1110152 DLA PN:04002-09

General Parameters
Brand:	Evans
Capacitor Type:	Hybrid Wet Tantalum
Voltage DC:	110
Capacitance:	1500uF
Operating Temperature Range:	-40°C to +70°C
Product Family:	HQ1
Series:	HQ1
Attributes:	High Capacitance, High Endurance, High Reliability, High Ripple Current, Low ESR, Low Leakage Current, MIL, Power Dense, Stability
Applications:	Directed Energy & Pulsed Power, Radar & RF Transmit/Pulse Modules, Oil & Gas Downhole & Wireline Tools, Power Conversion & DC-Link Filtering, General Industrial Energy Storage
Voltage 75°C:	110
DCL @ 85 °C (µA):	≤0.01 CV or 3 μA
Tolerance:	±20% Std (±10% Optional)
Dielectric:	Ta₂O₅
ESR (mΩ):	200
Termination:	Sn63/Pb37
Mounting Type:	Thru-hole
Dimension (in/mm):	L 1.63" (41.4mm) x W 1.645" (41.8mm) x H 0.29" (7.37mm)
Package / Case:	Radial
Rated Temp (°C):	70
Hermetic:	No
Lifetime @ Rated Temp & Rated Voltage:	<1000 hours
Height (in/mm):	0.29" (7.37 mm)
Weight (g):	31
