HQ1100192

Product Series Specifications

General Parameters
Brand: Evans
Capacitor Type: Hybrid Wet Tantalum
Voltage DC: 100
Capacitance: 1900uF
Product Family: HQ1
Series: HQ1
Operating Temperature Range: -40°C to +70°C
Attributes: High Capacitance, High Endurance, High Reliability, High Ripple Current, Low ESR, Low Leakage Current, MIL, Power Dense, Stability
Tolerance: ±20% Std (±10% Optional)
Dielectric: Ta₂O₅
Termination: Sn63/Pb37
Mounting Type: Thru-hole
Dimension (in/mm): L 1.63" (41.4mm) x W 1.645" (41.8mm) x H 0.29" (7.37mm)
Package / Case: Radial
Hermetic: No
Height (in/mm): 0.29" (7.37 mm)
Weight (g): 31
HQ1100192

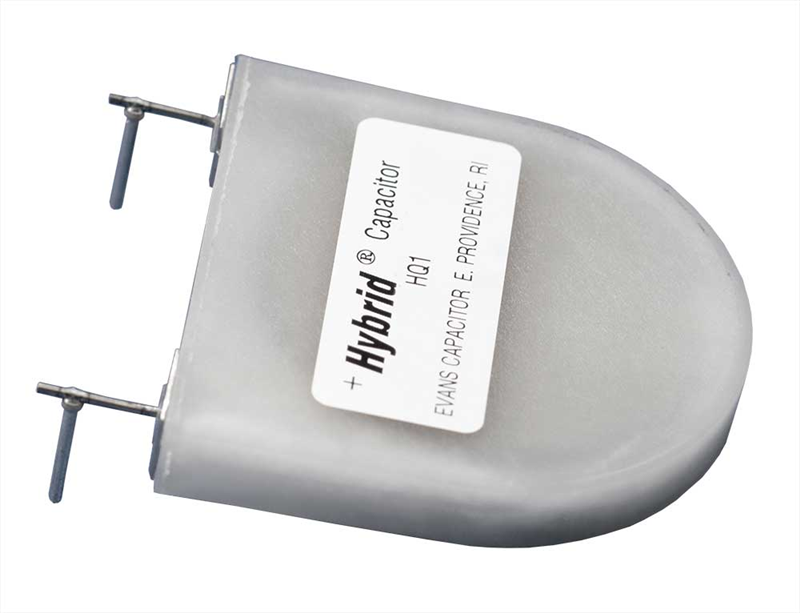

Product image is for representation purposes only. Refer to the product datasheet for exact specifications.
